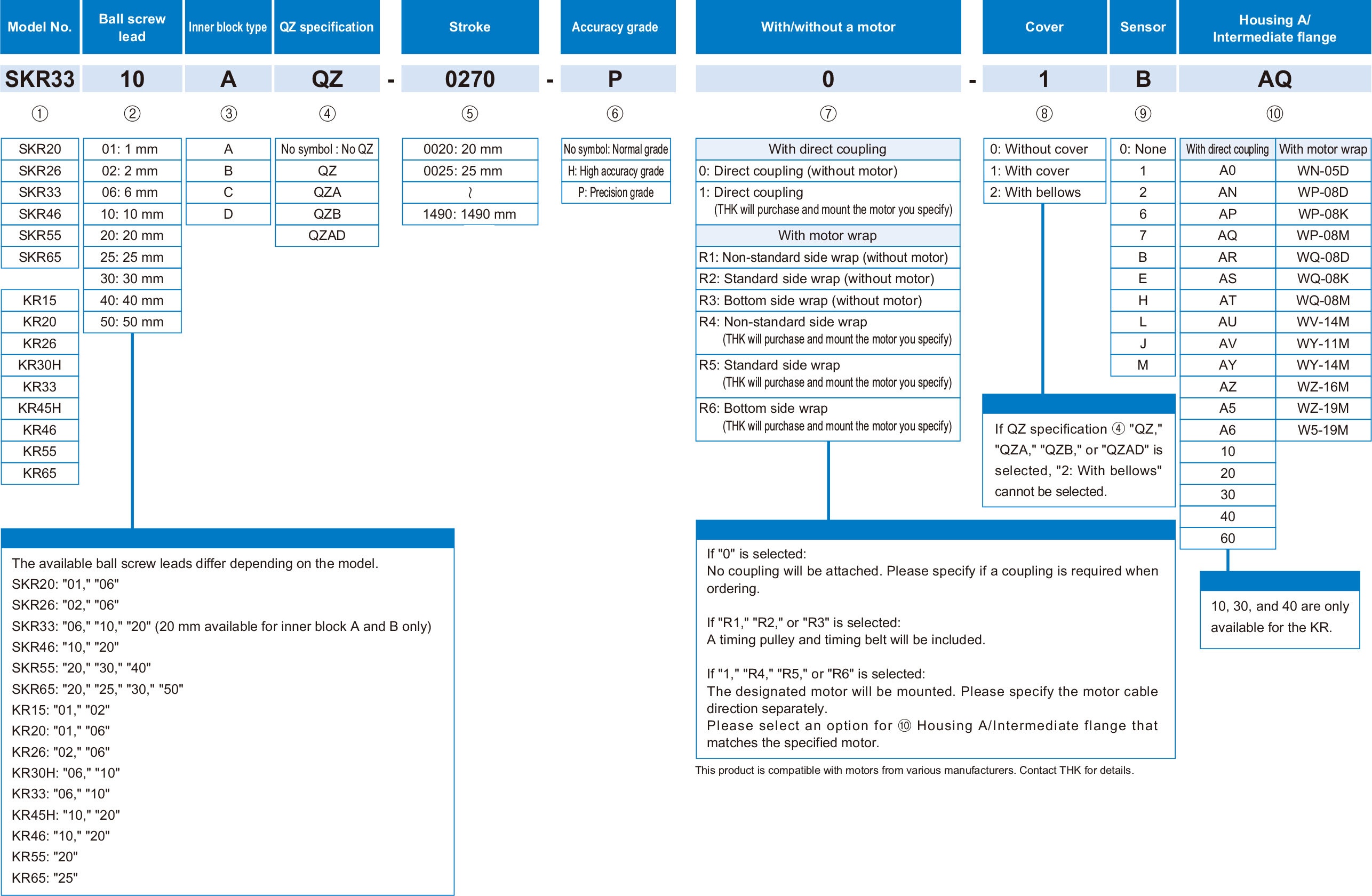

Model Number Coding

LM Guide Actuator

Copy item link
Add item to favorites
  • ④

    QZ specification ④ can be selected on the following models.
    SKR33
    SKR46
    KR33
    KR46
    KR55
    KR65

    • *

      It cannot be selected for SKR20, SKR26, SKR55, SKR65, KR15, KR20, KR26, KR30H and KR45H.

  • ⑤

    If QZ, QZA, QZB, or QZAD is selected for QZ specification ④, specify a stroke incorporating QZ.
    （→SKR、KR）
    If "2: with a bellows" has been selected for Cover ⑧, specify a stroke incorporating the bellows.
    （→SKR、KR）

  • ⑦

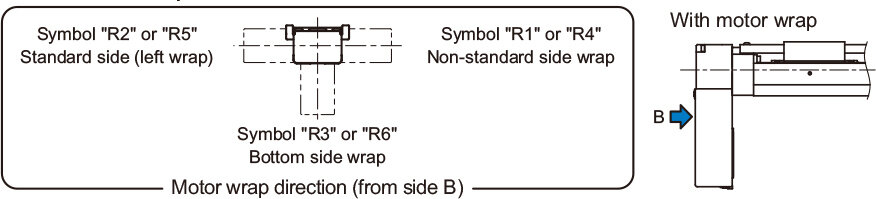

    Motor wrap direction
