Linear Bushing Linear Bushing Encased Type Model SH
It is a case unit where the standard type of Linear Bushing is incorporated into a smaller and lighter aluminum casing than model SC.This model allows even more compact design than model SC. It also has fl exibility in mounting orientation. Additionally, it is structured so that two rows of balls receive the load from the top of the casing, allowing a long service life to be achieved.
Basic load rating N : Basic dynamic load rating 206 to 1570 / Basic static load rating 265 to 2750
ShaftDiameter(mm) :
3,4,5,6,8,10,12,13,16,20
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- Felt Seal Model FLM
Lubrication
- Lubrication
Rustprevention
- Material and Surface Treatment
- Dust prevention
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information

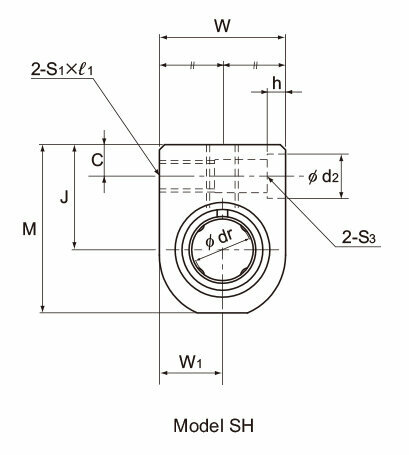

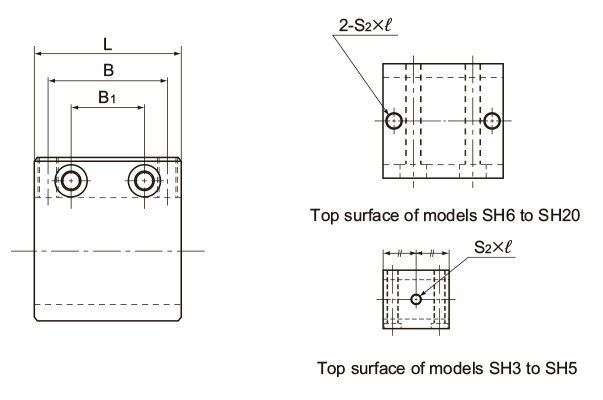

Dimensional drawing/Dimensional table
Notes on dimensional table
- Note) Since this model contains a synthetic resin retainer, do not use it at temperature exceeding 80°C. A stainless steel Linear Bushing model LM-MG, which is highly corrosion resistant, can also be incorporated at your request.
Linear Bushing Units
| Linear Bushing to be combined |
Examle of model No. |
|
|---|---|---|
| Both end attached with seal |
SH 13UU | Standard stock |
| Without seal | SH 13 | Build to order |
| Made of stainless steel; both end attached with seal |
SH 13MUU | Build to order |
