Linear Bushing Linear Bushing Encased Type Model SL
A case unit that features two standard linear bushings embedded within an aluminum casing.
Basic load rating N : Basic dynamic load rating 324 to 2490 / Basic static load rating 529 to 5490
ShaftDiameter(mm) :
6,8,10,12,13,16,20,25,30
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- Felt Seal Model FLM
Lubrication
- Lubrication
Rustprevention
- Material and Surface Treatment
- Dust prevention
Display result
- Detailed information

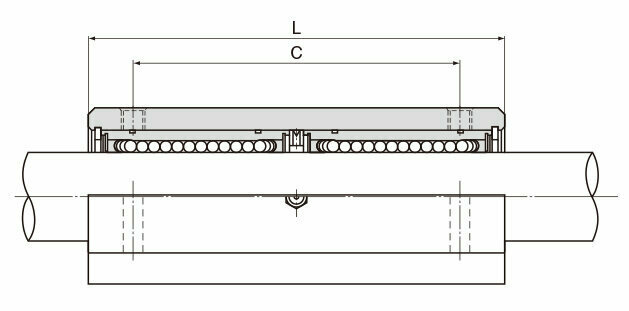

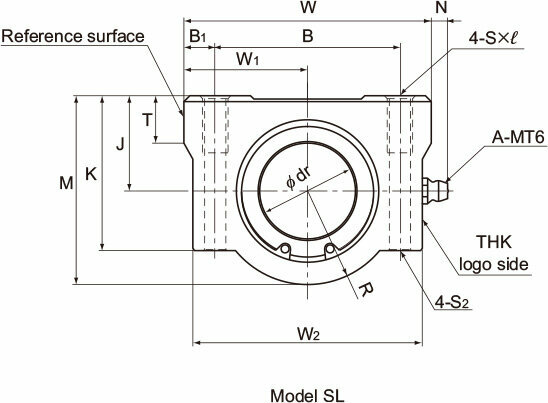

- Dimensional drawing/Dimensional table
- Optional
Detailed information
Dimensional drawing/Dimensional table
Notes on dimensional table
- Note) Since this model contains a synthetic resin retainer, do not use it at temperature exceeding 80°C. A stainless steel Linear Bushing model LM-MG, which is highly corrosion resistant, can also be incorporated at your request.
Linear Bushing Units
| Linear Bushing to be combined |
Examle of model No. |
|
|---|---|---|
| Both end attached with seal |
SL 13UU | Standard stock |
| Without seal | SL 13 | Build to order |
| Made of stainless steel; both end attached with seal |
SL 13MUU | Build to order |
