Detailed information: Dimensional drawing/Dimensional table

Optional

Detailed information

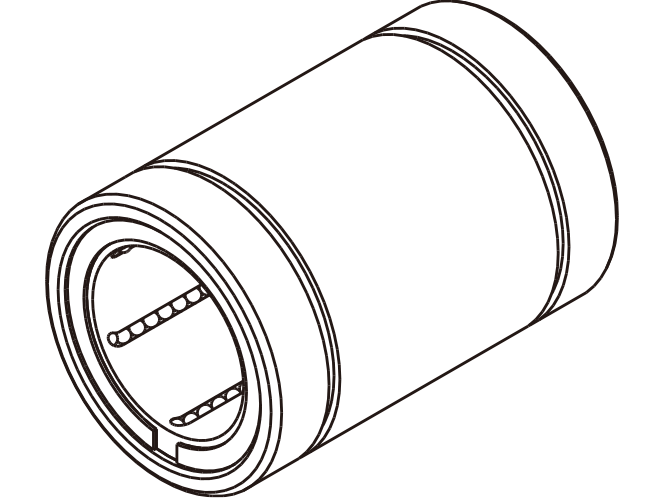

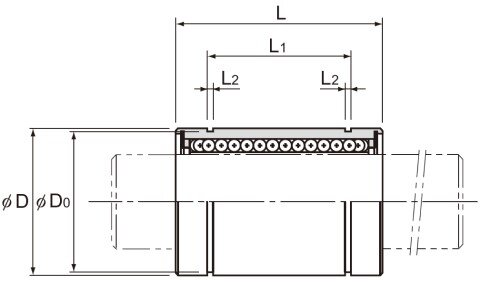

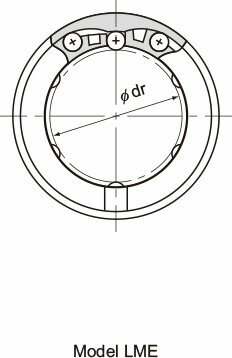

Dimensional drawing/Dimensional table

Notes on dimensional table

Note) Since Linear Bushing models LME60 or smaller models are incorporated with a synthetic resin retainer, do not use them at temperature exceeding 80℃.
If the ambient temperature exceeds 80℃, use the type equipped with a metal retainer and indicate "A" at the end of the model number.

If requiring a type equipped with a seal, indicate it when placing an order. (seal heat resistance: 80°C.)

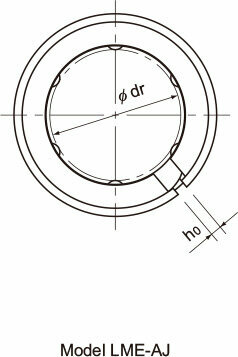

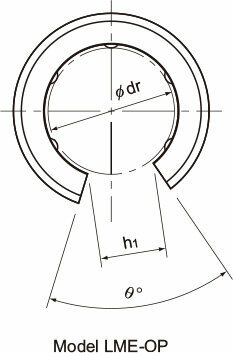

For the clearance-adjustable type (-AJ) and open type (-OP), the inscribed bore diameter tolerance, the outer diameter tolerance, and the eccentricity indicate the values before the division of the nut.
Note) If a metal retainer is used, the Linear Bushing has the shape as shown below. When using the Linear Bushing on a single shaft, use two or more units (instead of one unit) on the same shaft to avoid a moment load, and secure a large distance between the units. If an oil hole is required, this can be indicated by appending "OH" to the end of the model number. For further information, contact THK.
