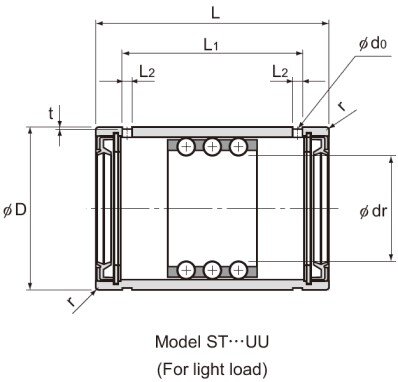

LM Stroke Model ST Model ST-UU
Model ST is a light load type that allows for a long stroke.
Seal Type Model ST.
Basic load rating kN : Basic dynamic load rating 0.98 to 22 / Basic static load rating 0.27 to 18.3
ShaftDiameter(mm) :
8,10,12,16,20,25,30,35,40,45,50,55,60,70,80,90,100
