LM Stroke Model ST Model ST
Model ST is a light load type that allows for a long stroke.
In addition, a type attached with seal is available. Model ST-UU
Basic load rating kN : Basic dynamic load rating 0.98 to 22 / Basic static load rating 0.23 to 18.3
Shaft Diameter (mm) :
6,8,10,12,16,20,25,30,35,40,45,50,55,60,70,80,90,100
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information

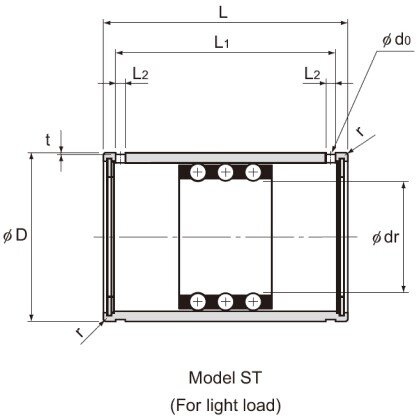

- Dimensional drawing/Dimensional table
- Model Number Coding
Display result
- Detailed information
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* | Catalog Download | Manual Download |
|---|---|---|---|---|---|
| ST 6 |  |  |  |  | |
| ST 8 | | | |||
| ST 10 | | | |||
| ST 12 | | | |||
| ST 16 | | | |||
| ST 20 | | | |||
| ST 25 | | | |||
| ST 30 | | | |||
| ST 35 | | | |||
| ST 40 | | | |||
| ST 45 | | | |||
| ST 50 | | | |||
| ST 55 | | | |||
| ST 60 | | | |||
| ST 70 | | | |||
| ST 80 | | | |||
| ST 90 | | | |||
| ST 100 | | |
*marks are not available for guest members.
