Precision Linear Pack Model ER Model ER
Model ER is a slide unit using a stainless steel plate that is precision formed, heat-treated and then ground.
It has a structure where balls roll between the V-shaped grooves machined on the outer rail and the inner block to allow the system to slide. It is an ultra-thin, lightweight unit in which the balls circulate in a ball case incorporated in the inner block to perform infinite straight motion. This model is used in extensive applications such as magnetic disc devices, electronic equipment, semiconductor manufacturing equipment, medical equipment, measuring equipment, plotting machines and photocopiers.
Basic load rating (kN): Basic dynamic load rating 54.9 to 215 / Basic static load rating 72.5 to 315
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Display result
- Detailed information
- Dimensional drawing/Dimensional table
Detailed information

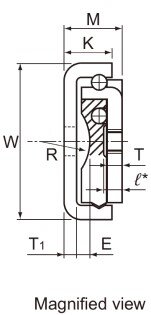

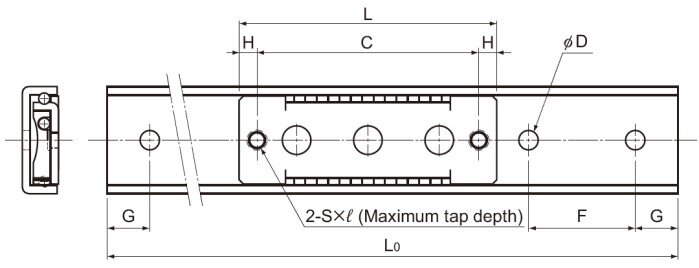

Dimensional drawing/Dimensional table
Notes on dimensional table
- Note1) To fix the outer rail of models ER513 and ER616, use cross-recessed pan head screws for precision equipment (No. 0 screw). To fix the outer rail of models ER920 and ER1025, cross-recessed pan head screws.
- Note2) * Set the screw length so that it does not exceed the "Maximum tap depth" l.
| Model No. | Type | Nominal name of screw × pitch |
|---|---|---|
| ER 513 | No. 0 pan-head screw (class 1) |
M2×0.4 |
| ER 616 | M2.6×0.45 | |
| ER 920 | Cross-recessed pan head screw |
M3×0.5 |
| ER 1025 | M4×0.7 |
･ Japan Camera Industry Association Standard JCIS 10-70
Cross-recessed screw for precision equipment (No. 0 screw)
･ Cross-recessed pan head screw JIS B 1111

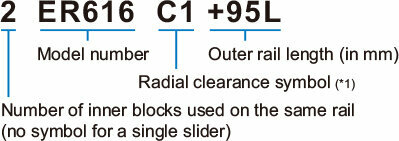

Model Number Coding
(*1) See Radial Clearance Standard
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
-
Easy product comparisonsHighlight feature
-
Save items for laterreview Favorites feature
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* | Catalog Download | Manual Download |
|---|---|---|---|---|---|
| ER513+40L |  |  |  |  | |
| ER513+60L | | | |||
| ER513+80L | | | |||
| ER616+45L | | | |||
| ER616+70L | | | |||
| ER616+95L | | | |||
| ER920+50L | | | |||
| ER920+80L | | | |||
| ER920+110L | | | |||
| ER1025+60L | | | |||
| ER1025+100L | | | |||
| ER1025+140L | | |
*marks are not available for guest members.
