Lead Screw Nut Model DC Model DC

A high-performance feed screw that achieves 50% cost reduction from the conventional machined products by combining a die cast screw nut and a highly accurate rolled screw shaft.

Dynamic permissible thrust F(N): 2840 to 42100

Precautions on Use

Select display items

Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.

Detailed information

THK Online Services
Member-Exclusive Content

These contents can be accessed

after registering as a member.

Benefit 1: Useful features

Easy product comparisonsHighlight feature
Save items for laterreview Favorites feature

Benefit 2: Exclusive content

Products	Contents
LM Guide	LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc.
Ball Screw	Axial clearance, maximum manufacturing length of shaft, etc.
Actuator	Movable part mass, etc.

Show selected item

Display result

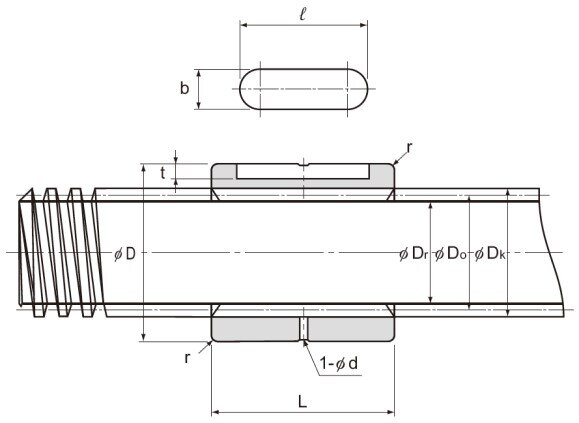

Detailed information: Dimensional drawing/Dimensional table

Detailed information

Dimensional drawing/Dimensional table

Notes on dimensional table

Note1) Cut shafts (K) are build-to-order. In the specification table, "standard shaft length" and "maximum shaft length" are values for rolled shafts (T).
For maximum shaft lengths of cut shafts (K), contact THK.
Note2) The dynamic permissible thrust (F) indicates the torque at which the contact surface pressure on the screw tooth surface is 9.8 N/mm².
The maximum axial load (both when stopped and during operation) is set to the dynamic permissible thrust or below, and it must be selected while taking into consideration the safety factors of Table1 on Selecting a Lead Screw Nut .

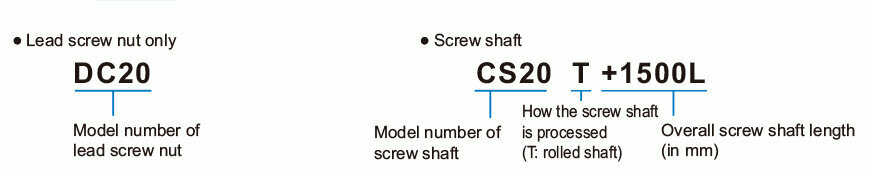

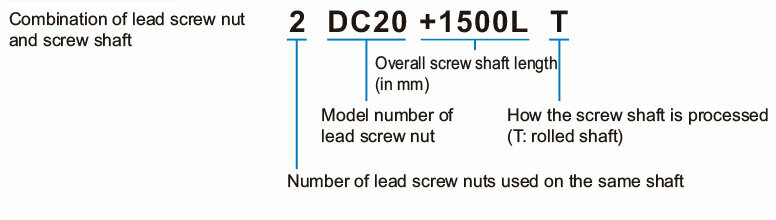

Model Number Coding
