Cam Follower Easy-mount Model CF-SFU Model CF-SFU
For easy mounting, the stud is equipped with a slot enabling it to be secured with a screw. This greatly reduces the time and labor required for installation and is ideal for applications where there is no space to secure the stud with a nut.
Basic load rating kN : Basic dynamic load rating 3.59 to 20.7 / Basic static load rating 3.58 to 34.8
Studdiameter(mm) :
6,8,10,12,16,18,20
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature
-
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
Products | Contents |
---|---|
LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- With/without a seal
Lubrication
- Grease nipple
Rustprevention
- Type of material
Other
- Cam Follower Accessories
- Roller Guide
- Outer ring outer surface configuration
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information

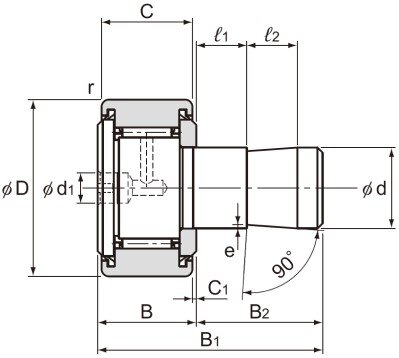

Dimensional drawing/Dimensional table
Notes on dimensional table
- Note) For information on accuracy standards, please refer to Accuracy standards.
- Note) *The rotational speed limit applies to models with grease lubrication and seals. Model CF-SFU is delivered with a stopper plug fitted.
Optional specifications | Symbol | |
---|---|---|
Roller guide | With cage | No Symbol |
Material | Carbon steel | No Symbol |
seal | With seal | No Symbol |
Outer ring shape | Cylindrical outer ring | No Symbol |

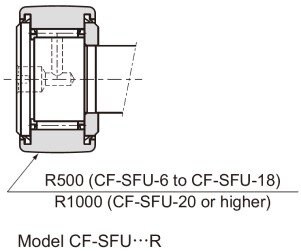

Spherical outer ring | R |

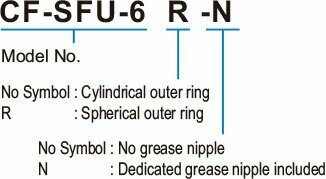

Model Number Coding
Note) Model CF-SFU is fitted with UU seals even where no UU symbol is used.
