Cam Follower Outer-ring Compact-type Model CFS-A Model CFS-A

This Cam Follower contains extremely fine needle rollers. The outer ring external diameter is extremely small relative to the stud diameter, allowing a compact design.

  • Outer-ring compact type

Basic load rating kN with cage: Basic dynamic load rating 0.41 to 2.06 / Basic static load rating 0.335 to 2.16
Basic load rating kN full rollers : Basic dynamic load rating 1 to 4.61 / Basic static load rating 1.08 to 6.27
Studdiameter(mm) : 2.5,3,4,5,6

Select display items

Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.

  • Select all
  • Deselect all

Detailed information

    THK Online Services
    Member-Exclusive Content

    These contents can be accessed

    after registering as a member.

    Log in/Register Click here for THK Online Services details

    Benefit 1: Useful features

    • Easy product comparisonsHighlight feature
    • Save items for laterreview Favorites feature

    Benefit 2: Exclusive content

    Products Contents
    LM Guide LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc.
    Ball Screw Axial clearance, maximum manufacturing length of shaft, etc.
    Actuator Movable part mass, etc.

Optional

Contamination Protection

  • With/without a seal

Lubrication

  • Grease nipple

Rustprevention

  • Type of material

Other

  • Cam Follower Accessories
  • Roller Guide
  • Outer ring outer surface configuration

Display result

Detailed information

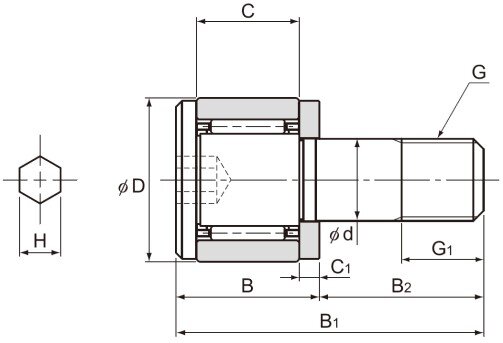

Dimensional drawing/Dimensional table
Optional

Detailed information

Dimensional drawing/Dimensional table

Notes on dimensional table
  • Note) For information on accuracy standards, please refer to Accuracy standards.
  • * Since model CFS does not have a greasing hole, it cannot be replenished with grease.
Optional specifications Symbol
Roller guide With cage No Symbol
Full rollers V
Material Carbon steel No Symbol
Stainless steel M
seal Without seal No Symbol
Outer ring
shape
Cylindrical outer ring No Symbol

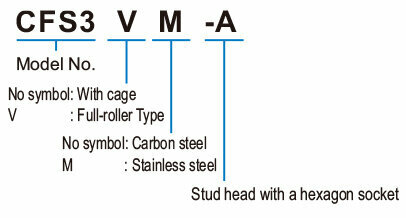

Model Number Coding

Note) Model CFS is only compatible with cylindrical outer ring types without seals and with stud head hexagon sockets.
