Cam Follower Model CF Model CF-AB
A hexagonal socket is provided on both studends, and a grease nipple for greasing is fitted to the inside. Therefore, lubrication and mounting from both directions is possible.
Basic load rating kN with cage: Basic dynamic load rating 7.87 to 45.4 / Basic static load rating 9.79 to 87.6
Basic load rating kN full rollers : Basic dynamic load rating 13.4 to 67.6 / Basic static load rating 19.8 to 145
Studdiameter(mm) :
12,16,18,20,24,30
![](https://www.thk.com/jp/assets/images/products/popular_type_cf-ab.png)
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
- Easy product comparisonsHighlight feature
- Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
Products | Contents |
---|---|
LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- With/without a seal
Lubrication
- Grease nipple
Rustprevention
- Type of material
Other
- Cam Follower Accessories
- Roller Guide
- Outer ring outer surface configuration
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information

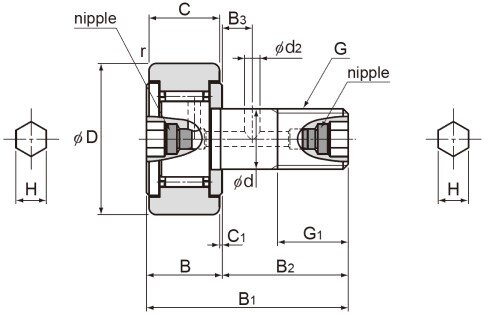

Dimensional drawing/Dimensional table

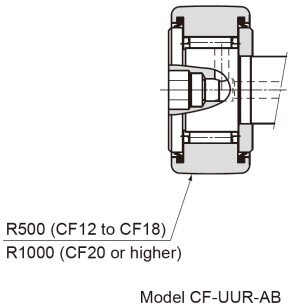

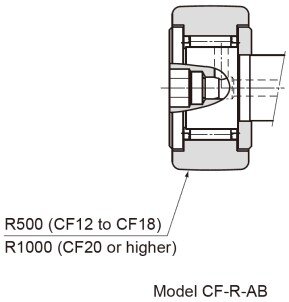

![](https://www.thk.com/jp/assets/images/products/popular_type_cf-ab_en_img_s01.jpg)
![](https://www.thk.com/jp/assets/images/products/popular_type_cf-ab_en_img_s02.jpg)
![](https://www.thk.com/jp/assets/images/products/popular_type_cf-ab_en_img_s03.jpg)
![](https://www.thk.com/jp/assets/images/products/popular_type_cf-ab_en_img_s04.jpg)
Notes on dimensional table
- Note) For information on accuracy standards, please refer to Accuracy standards.
- Note) The rotation speed limit value in the table (*) applies to models that have no seal and use grease lubrication. With those models using oil lubrication, up to 130% of this value is permitted. With those attached with seals, up to 70% of this value is permitted.
Optional specifications | Symbol | |
---|---|---|
Roller guide | With cage | No Symbol |
Full rollers | V | |
Material | Carbon steel | No Symbol |
Stainless steel | M | |
Seal | Without seal | No Symbol |
With seal | UU | |
Outer ring shape |
Cylindrical outer ring | No Symbol |
Spherical outer ring | R |

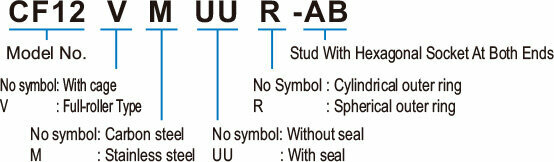

Model number coding
![](https://www.thk.com/jp/assets/images/products/popular_type_cf-ab_en_img_s05.jpg)
Note) For accessories, see Accessories .
