Cam Follower with a Tapped Hole for Greasing Model CFT Model CFT
Basically the same as the popular type Cam Follower, this model is provided with tapped holes for piping on the stud head and the thread. It is optimal for locations where an integrated piping for greasing is required.
Basic load rating kN with cage: Basic dynamic load rating 3.59 to 45.4 / Basic static load rating 3.58 to 87.6
Basic load rating kN full rollers : Basic dynamic load rating 6.94 to 67.6 / Basic static load rating 8.5 to 145
Studdiameter(mm) :
6,8,10,12,16,18,20,24,30
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- With/without a seal
Lubrication
- Grease nipple
Rustprevention
- Type of material
Other
- Cam Follower Accessories
- Roller Guide
- Outer ring outer surface configuration
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information

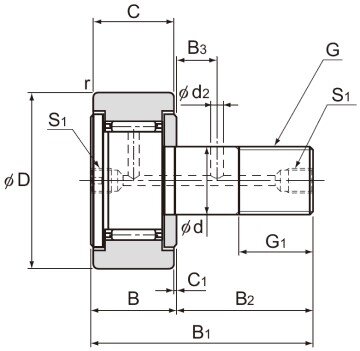

Dimensional drawing/Dimensional table
Notes on dimensional table
- Note) For information on accuracy standards, please refer to Accuracy standards. Those models marked with "*" have a greasing hole only on the head.
- Note) The rotation speed limit value in the table (*) applies to models that have no seal and use grease lubrication. With those models using oil lubrication, up to 130% of this value is permitted. With those attached with seals, up to 70% of this value is permitted.
| Optional specifications | Symbol | |
|---|---|---|
| Roller guide | With cage | No Symbol |
| Full rollers | V | |
| Material | Carbon steel | No Symbol |
| Stainless steel | M | |
| seal | Without seal | No Symbol |
| With seal | UU | |
| Outer ring shape |
Cylindrical outer ring | No Symbol |
| Spherical outer ring | R | |

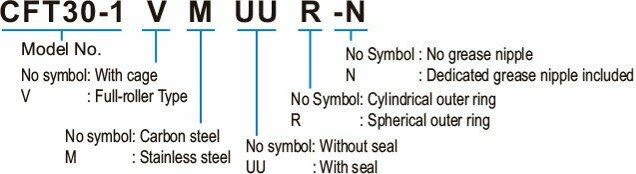

Model Number Coding
(*1) See Grease nipple
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
-
Easy product comparisonsHighlight feature
-
Save items for laterreview Favorites feature
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* | Catalog Download | Manual Download |
|---|---|---|---|---|---|
| CFT 6 |  |  |  |  | |
| CFT 6R | | | |||
| CFT 8 | | | |||
| CFT 8R | | | |||
| CFT 10 | | | |||
| CFT 10R | | | |||
| CFT 10-1 | | | |||
| CFT 10-1R | | | |||
| CFT 12 | | | |||
| CFT 12R | | | |||
| CFT 12-1 | | | |||
| CFT 12-1R | | | |||
| CFT 16 | | | |||
| CFT 16R | | | |||
| CFT 18 | | | |||
| CFT 18R | | | |||
| CFT 20 | | | |||
| CFT 20R | | | |||
| CFT 20-1 | | | |||
| CFT 20-1R | | | |||
| CFT 24 | | | |||
| CFT 24R | | | |||
| CFT 24-1 | | | |||
| CFT 24-1R | | | |||
| CFT 30 | | | |||
| CFT 30R | | | |||
| CFT 30-1 | | | |||
| CFT 30-1R | | | |||
| CFT 30-2 | | | |||
| CFT 30-2R | | |
*marks are not available for guest members.
