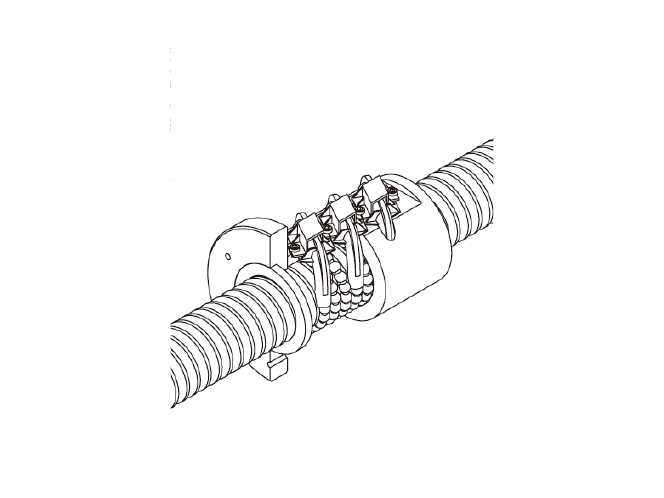

Precision Caged Ball Screw High Load Model HBN
With the optimal design for high loads, this Ball Screw model achieves a rated load more than twice the conventional type.
Screwshaftdiameter(mm) : 32,36,40,50,63
Types
Highlight feature tags
- Long-term maintenance free
- High speed
- High-load ball screw
- No preload
- Return-piece
- Precision positioning (ball screw)
- Long-term maintenance free
- High speed
- High-load ball screw
- No preload
- Return-piece
- Precision positioning (ball screw)
DN value : 130000
Screwshaftdiameter(mm) :
32,36,40,50,63
Detailed information for each model number
Dimensional drawing/Dimensional table
