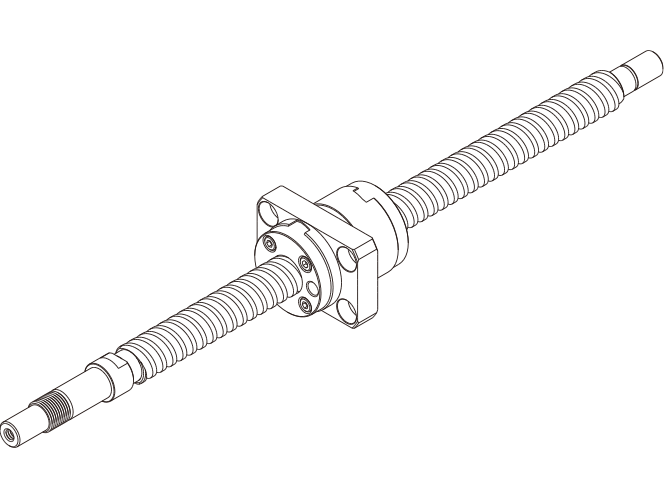

BNK Precision Ball Screw with Finished Shaft Ends Model BNK14
For this model, screw shafts with a screw shaft outer diameter 4 to 25 mm and a lead 1 to 20 mm are avilable as the standard.
Lead(mm) : 2,4,8
Types
Highlight feature tags
- Preload
- No preload
- Return-pipe type
- Deflector type
- Precision positioning (ball screw)
- Finished shaft ends
- Preload
- No preload
- Deflector type
- Precision positioning (ball screw)
- Finished shaft ends
DN value : 70000
Lead(mm) :
2
- Preload
- No preload
- Deflector type
- Precision positioning (ball screw)
- Finished shaft ends
DN value : 70000
Lead(mm) :
4
- Preload
- No preload
- Return-pipe type
- Precision positioning (ball screw)
- Finished shaft ends
DN value : 70000
Lead(mm) :
8
Detailed information for each model number
