Full-Ball Type Precision Ball Screw Model BNF-V Model BNF-V Medium 25 / 28 / 32 / 36 / 40
The simplest type with a single ball screw nut. It is designed to be mounted using the bolt holes drilled on the flange.The Model BNF-V has improved DN values in comparison with the Model BNF. (DN values: Small: 100,000, Medium: 130,000)
DN value : 130000
Screw shaft diameter (mm) :
25,28,32,36,40
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information

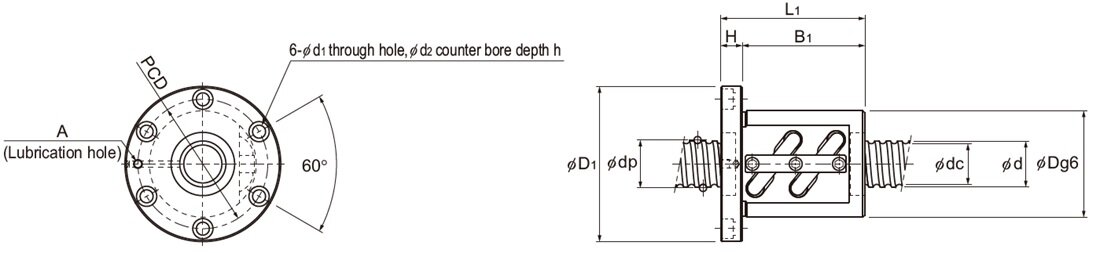

- Dimensional drawing/Dimensional table
- Model Number Coding
- Maximum Manufacturing Length of the Screw Shaft
Optional
Contamination Protection
- Contamination Protection Seal for Ball Screws Labyrinth seal
- Contamination Protection Seal for Ball Screws Brush seal
- Wiper Ring
- Canvas seal
- Thin Film Seal
- Dust Cover for Ball Screws
Lubrication
- QZ Lubricator
Rustprevention
- Surface Treatment
Other
- Dimensions of Each Model with an Option Attached
- Additional Machining for Shaft Ends
Display result
- Detailed information
- Optional
Optional
No option tag has been selected.
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* |
Catalog Download |
Manual Download |
|---|---|---|---|---|---|
| BNF 2508V-2.5 |
 |
 |
 |
 |
 |
| BNF 2508V-3.5 |
|
|
|||
| BNF 2508V-5 |
|
|
|||
| BNF 2510V-2.5 |
|
|
|||
| BNF 2810V-2.5 |
|
|
|||
| BNF 3210V-2.5 |
|
|
|||
| BNF 3210V-3.5 |
|
|
|||
| BNF 3210V-5 |
|
|
|||
| BNF 3212V-3.5 |
|
|
|||
| BNF 3216V-5 |
|
|
|||
| BNF 3610V-2.5 |
|
|
|||
| BNF 3610V-5 |
|
|
|||
| BNF 3610V-7.5 |
|
|
|||
| BNF 3612V-2.5 |
|
|
|||
| BNF 3612V-5 |
|
|
|||
| BNF 3616V-2.5 |
|
|
|||
| BNF 3620V-1.5 |
|
|
|||
| BNF 4010V-2.5 |
|
|
|||
| BNF 4010V-3.5 |
|
|
|||
| BNF 4010V-5 |
|
|
|||
| BNF 4012V-2.5 |
|
|
|||
| BNF 4012V-3.5 |
|
|
|||
| BNF 4012V-5 |
|
|
|||
| BNF 4016V-5 |
|
|
|||
| BNF 4020V-5 |
|
|
