Full-Ball Type Precision Ball Screw High-Speed Ball Screw for Machine Tools Model BSM

Our new ball circulation system achieves even higher speeds (DN value 170,000) Increases the speed of equipment

Screw shaft diameter (mm) : 36,40,45,50,63

Handling Precautions

Types

Highlight feature tags

DN value : 170000
Screw shaft diameter (mm) : 40,45,50,63

DN value : 170000
Screw shaft diameter (mm) : 36,40,45,50

Features

High-speed performance

Significantly improves the DN value with a newly developed circulation structure.

DN value greatly improved from 130,000 in conventional products to 170,000.
Utilizes a large lead to meet high-speed performance demands.
Maximum feed speed of 121 m/min (for the BSM4030-6)

Maximum Feed Speed

Unit: m /min

Screw shaft outer diameter (mm)	Lead (mm)
Screw shaft outer diameter (mm)	16	20	25	30
ø 36	-	90	-	-
ø 40	65	81	101	121
ø 45	58	73	90	-
ø 50	52	66	82	98
ø 63	41	-	-	-

Design that responds to the performance needs of machine tools

Improves load capacity through the groove design.

The BSM improves load capacity with a unique groove design and double groove structure.

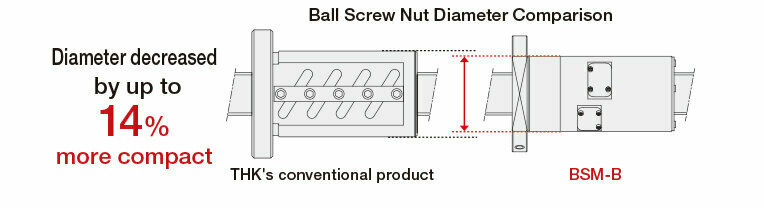

Compact with high rigidity

Achieves higher rigidity and a more compact nut diameter than our conventional products.

The BSM-B conserves space with a slimmer nut compared to our conventional products. Rigidity was also improved by extending the overall length and increasing the number of loaded circuits.

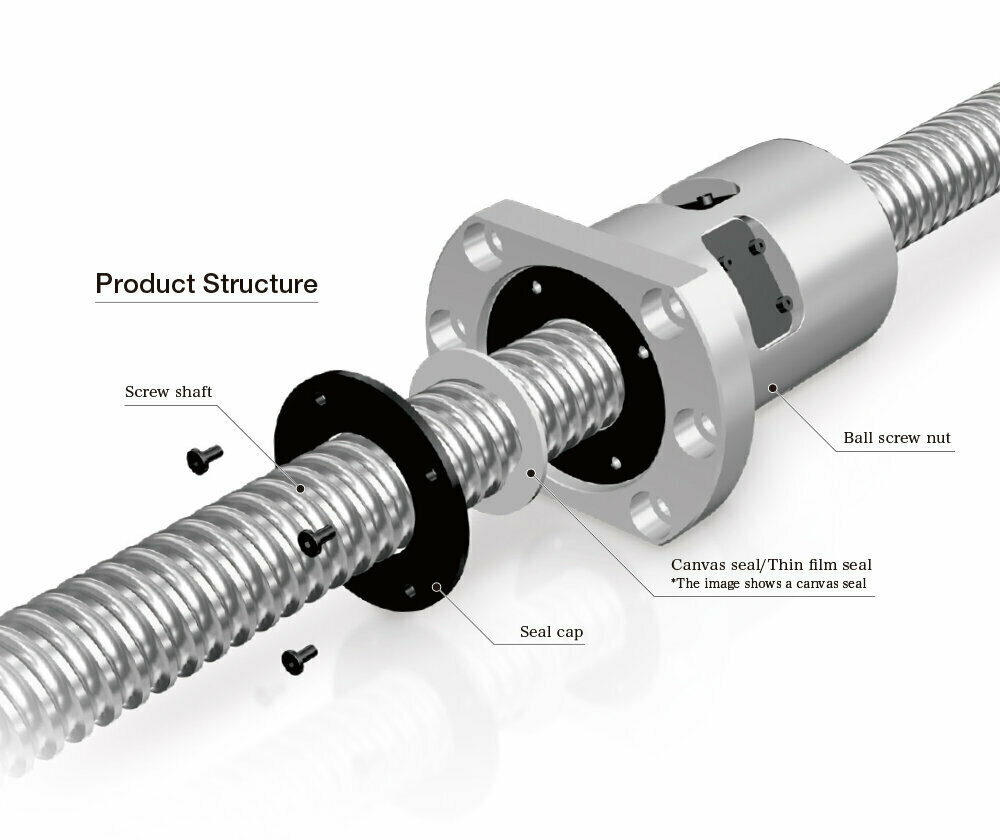

Product Structure

BSM Lineup

Screw shaft outer diameter	Lead
Screw shaft outer diameter	16	20	25	30
ø 36	-	○	-	-
ø 40	●	●○	●○	●○
ø 45	●	●○	●○	-
ø 50	●	●○	●○	●○
ø 63	●	-	-	-

● : BSM ○ : BSM-B (Slim Nut Type)

Detailed information for each model number

Toggle chart

Model BSM
BSM-B (Slim Nut Type)
