ISO 3408 Compliant

In the DIN standard compliant Ball Screw, balls under a load roll in the raceway cut between the screw shaft and the nut while receiving the axial load, travel along the groove of a deflector embedded inside the nut to the adjacent raceway, and then circulate back to the loaded area. Thus, the balls perform infinite rolling motion.

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Long-term maintenance free
  • Compact
  • High speed
  • In accordance with ISO standards
  • Large lead
  • Preload
  • No preload
  • Offset preload
  • Deflector type
  • Double nut
  • Precision positioning (ball screw)
  • Double nut preload

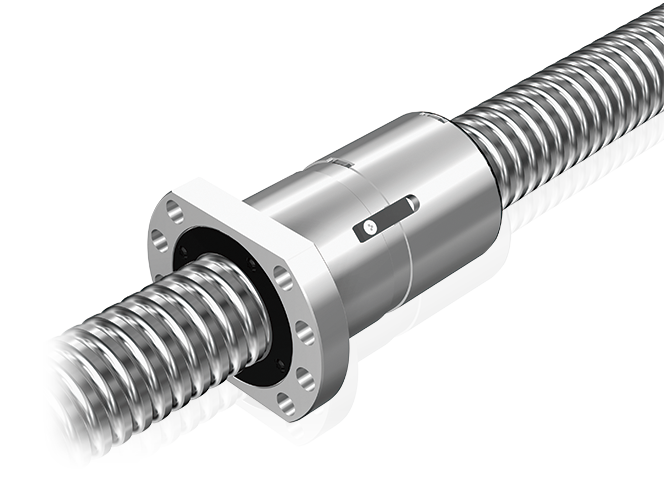

High Speed SDAN-V/SDAN-VX type
  • Precision positioning (ball screw)
  • Long-term maintenance free
  • In accordance with ISO standards
  • Preload
  • Double nut preload
  • High speed
  • Compact
  • Double nut

Screw shaft diameter (mm) : 31,32,36,38,40,45,50,55,63

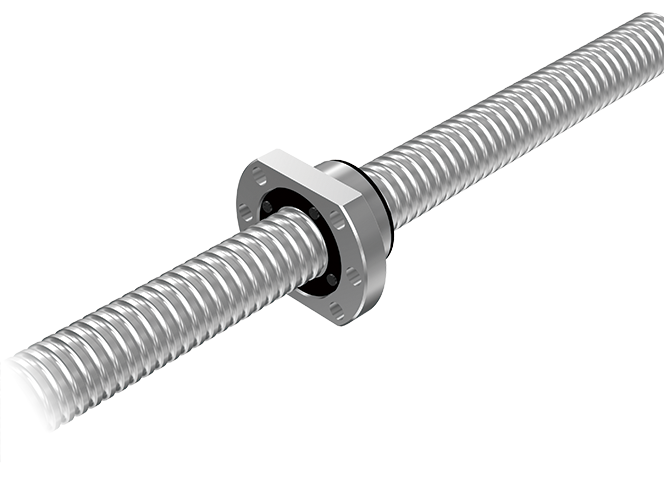

Compact Type SDA-V/SDA-VZ
  • Precision positioning (ball screw)
  • Long-term maintenance free
  • In accordance with ISO standards
  • Large lead
  • Preload
  • No preload
  • High speed
  • Compact

Screw shaft diameter (mm) : 10,12,14,15,16,20,25,28,31,32,36,38,40,45,50

EPB-V
  • Precision positioning (ball screw)
  • In accordance with ISO standards
  • Large lead
  • Preload
  • Offset preload
  • High speed
  • Compact
  • Deflector type

Screw shaft diameter(mm) : 16,20,25,28,32,36,40,50,63

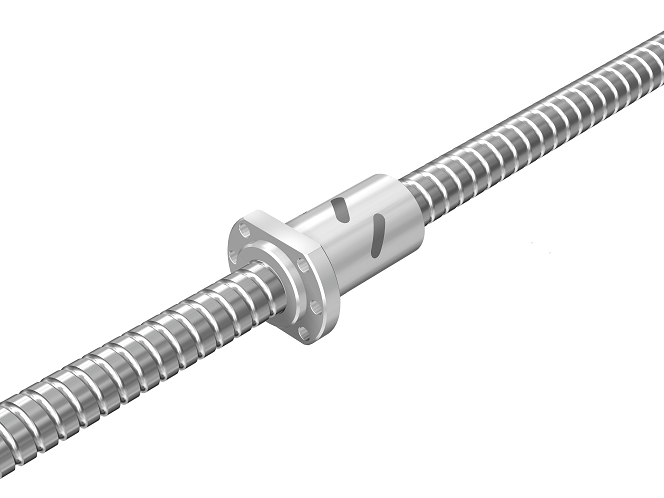

EBB-V
  • Precision positioning (ball screw)
  • In accordance with ISO standards
  • Large lead
  • No preload
  • High speed
  • Compact
  • Deflector type

Screwshaftdiameter(mm) : 16,20,25,28,32,36,40,50,63,80

Features

Copy item link
Add item to favorites

Structure and Features

Copy item link
Add item to favorites

In the ISO standard compliant Ball Screw, balls under a load roll in the raceway cut between the screw shaft and the nut while receiving the axial load, travel along the groove of a deflector embedded inside the nut to the adjacent raceway, and then circulate back to the loaded area. Thus, the balls perform infinite rolling motion. Two types of nuts are available: model EBB-V of oversized-ball preload type or non-preloaded type, and model EPB-V of offset preloaded type.

Compact

This Ball Screw is compactly built. Because of an internal circulation system using deflectors, the outer diameter of the nut is 70 to 80% of the conventional double nut and the overall nut length is only 60 to 80% of the return pipe nut.

Compliant with a ISO standard

The nut flange shape, mounting holes and rated load are compliant with ISO3408-2.

Types and Features

Models EBB-V/EPB-V

EBB-V
GT,G1,G2,G3 clearance
G0:Preloaded

EPB-V
G0: Preloaded

Lead(mm)

4

5

6

8

10

12

16

20

Shaft diameter
(mm)

16

● ■

20

● ■

● ■

● ■

● ■

● ■

● ■

25

● ■

● ■

● ■

● ■

● ■

● ■

28

● ■

32

● ■

● ■

● ■

● ■

● ■

36

● ■

● ■

● ■

40

● ■

● ■

● ■

● ■

● ■

● ■

50

● ■

● ■

● ■

63

● ■

80

:EBB-V :EPB-V
