ISO 3408 Compliant EBB-V
In the ISO standard compliant Ball Screw, balls under a load roll in the raceway cut between the screw shaft and the nut while receiving the axial load, travel along the groove of a deflector embedded inside the nut to the adjacent raceway, and then circulate back to the loaded area. Thus, the balls perform infinite rolling motion.
Two types of nuts are available: model EBB-V of oversized-ball preload type or non-preloaded type, and model EPB-V of offset preloaded type.
Screwshaftdiameter(mm) : 16,20,25,28,32,36,40,50,63,80
Types
Highlight feature tags
- Compact
- High speed
- In accordance with ISO standards
- Large lead
- No preload
- Deflector type
- Precision positioning (ball screw)
- Compact
- High speed
- In accordance with ISO standards
- Large lead
- No preload
- Deflector type
- Precision positioning (ball screw)
DN value : 130000
Screwshaftdiameter(mm) :
16,20,25,28,32,36
- Compact
- High speed
- In accordance with ISO standards
- Large lead
- No preload
- Deflector type
- Precision positioning (ball screw)
DN value : 130000

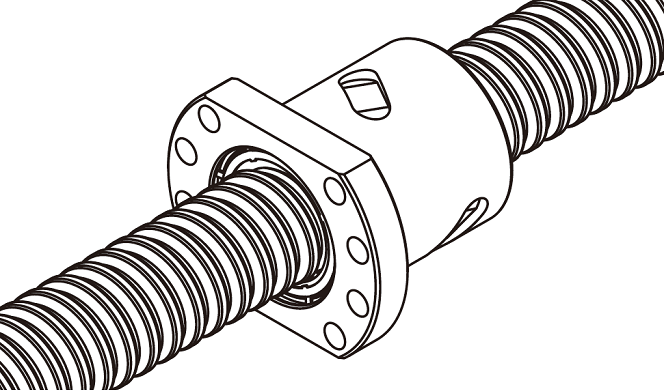

Screwshaftdiameter(mm) :
40,50,63,80
Detailed information for each model number
Dimensional drawing/Dimensional table
