ISO 3408 Compliant EBB-V Model EBB-V 16/20/25/28/32/36

In the ISO standard compliant Ball Screw, balls under a load roll in the raceway cut between the screw shaft and the nut while receiving the axial load, travel along the groove of a deflector embedded inside the nut to the adjacent raceway, and then circulate back to the loaded area. Thus, the balls perform infinite rolling motion.
Two types of nuts are available: model EBB-V of oversized-ball preload type or non-preloaded type, and model EPB-V of offset preloaded type.

DN value : 130000
Screwshaftdiameter(mm) : 16,20,25,28,32,36

Precautions on Use

Select display items

Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.

Detailed information

THK Online Services
Member-Exclusive Content

These contents can be accessed

after registering as a member.

Benefit 1: Useful features

Easy product comparisonsHighlight feature
Save items for laterreview Favorites feature

Benefit 2: Exclusive content

Products	Contents
LM Guide	LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc.
Ball Screw	Axial clearance, maximum manufacturing length of shaft, etc.
Actuator	Movable part mass, etc.

Optional

Dimensions of Each Model with an Option Attached
Additional Machining for Shaft Ends

Show selected item

Display result

Detailed information: Dimensional drawing/Dimensional table

Optional

Detailed information

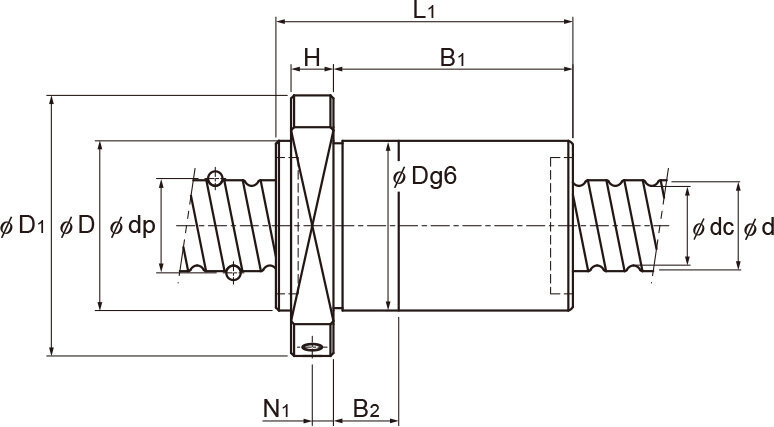

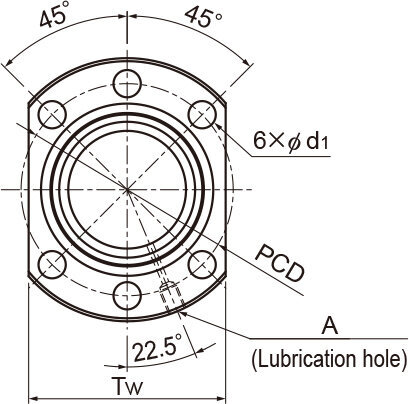

Dimensional drawing/Dimensional table

Notes on dimensional table

Note: When the QZ Lubricator and W wiper ring are attached, the overall length of the nut dimensions will increase. Contact THK for details.

Note)
The rigidity values in the table represent spring constants each obtained from the load and the elastic deformation when providing an axial load 24% of the basic dynamic load rating (Ca).
These values do not include the rigidity of the components related to mounting the nut. Therefore, it is normally appropriate to regard roughly 80% of the value in the table as the actual value.
If the axial load (Fa) is not 30% of Ca, the rigidity value (K_N) is obtained from the following equation.

K: Rigidity value in the dimensional table

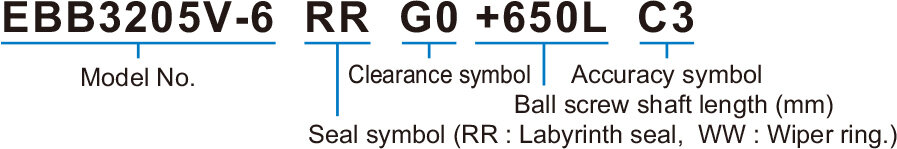

Model number coding

THK Online Services
Member-Exclusive Content

These contents can be accessed

after registering as a member.

Benefit 1: Useful features

Easy product comparisonsHighlight feature
Save items for laterreview Favorites feature

Benefit 2: Exclusive content

Products	Contents
LM Guide	LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc.
Ball Screw	Axial clearance, maximum manufacturing length of shaft, etc.
Actuator	Movable part mass, etc.

Optional

No option tag has been selected.

Check detailed information with the tool

Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.

Model No.	Designer*	Life Calculator*	CAD Download*	Catalog Download	Manual Download
EBB 1605V-4
EBB 2004V-8
EBB 2005V-3
EBB 2006V-6
EBB 2008V-6
EBB 2010V-6
EBB 2504V-8
EBB 2505V-3
EBB 2506V-6
EBB 2508V-6
EBB 2510V-3
EBB 2510V-4
EBB 2512V-4
EBB 2806V-6
EBB 3204V-10
EBB 3205V-3
EBB 3205V-4
EBB 3205V-6
EBB 3206V-8
EBB 3208V-8
EBB 3210V-3
EBB 3210V-4
EBB 3604V-6
EBB 3606V-8
EBB 3608V-8

*marks are not available for guest members.
