ISO 3408 Compliant High Speed SDAN-V/SDAN-VX type

The preloading system uses a double-nut preload system in which two ball screw nuts are combined using a spacer to eliminate backlash. The nut dimensions conform to ISO standards (ISO 3408). It demonstrates improved axial rigidity compared to the SDA-V.
The SDAN-VX is the Full-Ball version of the SDAN-V.

  • Long-term maintenance free
  • Compact
  • High speed
  • In accordance with ISO standards
  • Preload
  • Double nut
  • Precision positioning (ball screw)
  • Double nut preload

Screw shaft diameter (mm) : 31,32,36,38,40,45,50,55,63

Types

Copy item link
Add item to favorites

Highlight feature tags

  • Long-term maintenance free
  • Compact
  • High speed
  • In accordance with ISO standards
  • Preload
  • Double nut
  • Precision positioning (ball screw)
  • Double nut preload
Models SDAN-V / SDAN-VX 31 / 32 / 36 / 38 / 40
  • Long-term maintenance free
  • Compact
  • High speed
  • In accordance with ISO standards
  • Preload
  • Double nut
  • Precision positioning (ball screw)
  • Double nut preload

DN value(Models SDAN-V / SDAN-VZ) : 160000 / 130000
Screw shaft diameter (mm) : 31,32,36,38,40

Models SDAN-V / SDAN-VX 45 / 50
  • Long-term maintenance free
  • Compact
  • High speed
  • In accordance with ISO standards
  • Preload
  • Double nut
  • Precision positioning (ball screw)
  • Double nut preload

DN value(Models SDAN-V / SDAN-VZ) : 160000 / 130000
Screw shaft diameter (mm) : 45,50

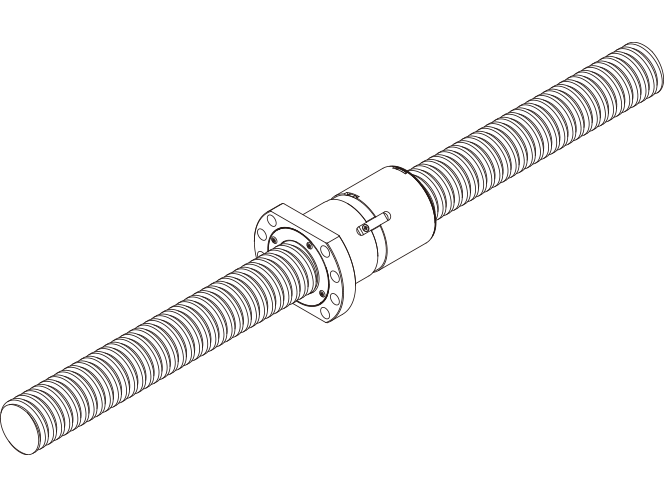

Models SDAN-V / SDAN-VX 55 / 63
  • Long-term maintenance free
  • Compact
  • High speed
  • In accordance with ISO standards
  • Preload
  • Double nut
  • Precision positioning (ball screw)
  • Double nut preload

DN value : 130000
Screw shaft diameter (mm) : 55,63

Features

Copy item link
Add item to favorites

High Speed

Copy item link
Add item to favorites

Picks up balls in the tangential direction and achieves a maximum rotational speed of 5,000 min-1 (DN value: 160,000).Torque remains stable even during long periods of high-speed operation.

Conforms to DIN Standards

Copy item link
Add item to favorites

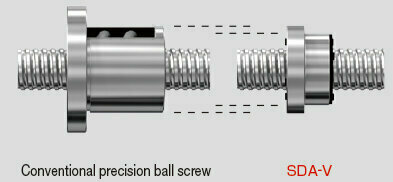

The outer diameter is up to 30% more compact than previous THK products.Enables compact machine designs. Nut dimensions conform to ISO standards (ISO 3408).

Picks Up Balls in the Tangential Direction

Copy item link
Add item to favorites

Newly developed circulation components enable an ideal ball circulation structure.

Model SDA-V/SDAN-V Lineup

Copy item link
Add item to favorites

A diverse product lineup to meet your varied needs. Full-Ball types are also available.

●: Model SDA-V
■,:Model SDAN-V

Lead

Shaft diameter

4 5 6 8 10 12 16 20 25 30 32 36 40 50
10
12
14
15
16
20
25
28
31 ●■ ●■ ●■ ●■
32
36 ●■ ●■ ●■ ●■
38 ●■ ●■ ●■ ●■
40
45
50
55
63

:Additional models

*The above chart is the lineup as of October 2022.
