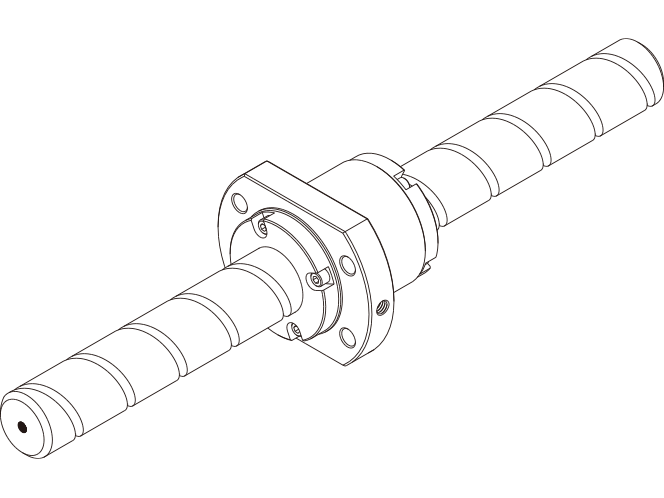

Full-Ball Type Rolled Ball Screw Large Lead Model BLK
With this Ball Screw, the shaft diameter is the same as the lead dimension.
Screw shaft diameter (mm) : 08,10,15,16,20,25,32,36,40,50
Types
Highlight feature tags
- Large lead
- No preload
- End-cap type
- Transport (ball screw)
- Large lead
- No preload
- End-cap type
- Transport (ball screw)
DN value : 70000
Screw shaft diameter (mm) :
08,10,15,16,20,25,32,36,40,50
Detailed information for each model number
Dimensional drawing/Dimensional table
