Full-Ball Type Rolled Ball Screw Standard nut Model BTK-V

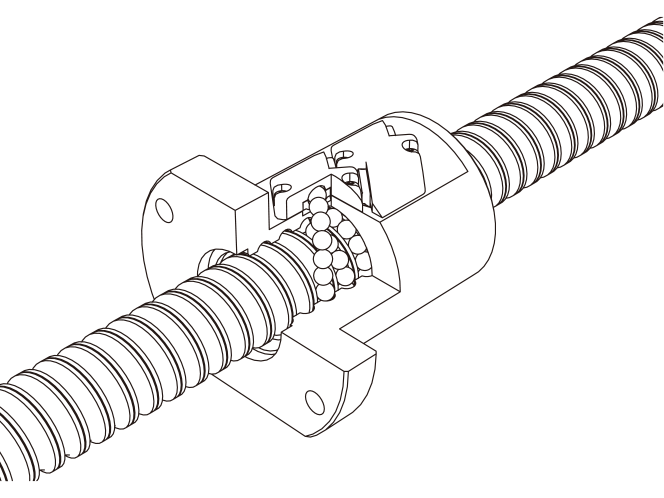

A compact, round type Ball Screw with a ball screw nut incorporated with a return pipe. The flange circumference is cut flat at the top and bottom, allowing the shaft center to be positioned low.
Screw shaft diameter (mm) : 10,12,14,16,18,20,25,28,32,36,40,45,50
Types
Highlight feature tags
- No preload
- Return-pipe type
- Transport (ball screw)
- No preload
- Return-pipe type
- Transport (ball screw)
DN value : 100000
Screw shaft diameter (mm) :
10,12,14,16,18,20,25,28,32,36,40,45,50
Detailed information for each model number
Dimensional drawing/Dimensional table
