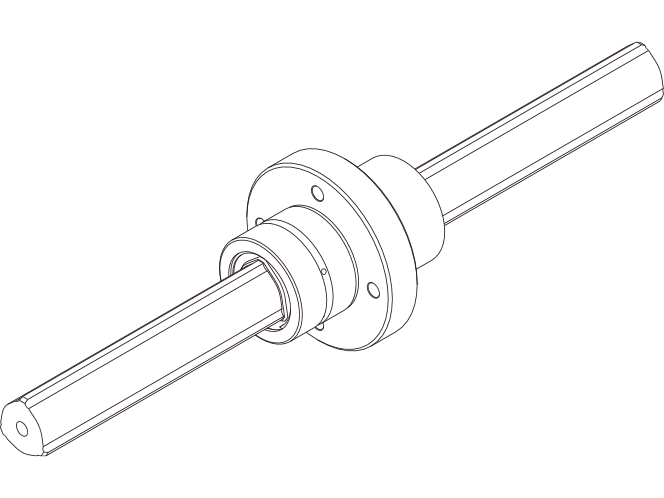

High Torque Type Ball Spline High Torque Model LBR
Based on the heavy load type model LBST, this model has a flange in the central area, making itself optimal for locations under a moment load such as arms of industrial robots.
Spline shaft diameter (mm) : 15,20,25,30,40,50
Types
Highlight feature tags
- High torque type
- Flanged type
- Solid spline shaft
- Hollow spline shaft
- High torque type
- Flanged type
- Solid spline shaft
- Hollow spline shaft
basic load ratings(kN) : Basic dynamic load rating 4.4 to 55.1 / Basic static load rating 8.4 to 94.1
Spline shaft diameter (mm) :
15,20,25,30,40,50
Detailed information for each model number
Toggle chart
- Model LBR
