Medium Torque Type Ball Spline Compact Model LF-X Model LF-X
The nut is more compact than that of the current Model LF thanks to the new circulating pathways.
The outer diameter of the nut is the same as that of the linear bushing.
The Model LF-XL is suitable for moment loads, torque, and overhung loads that exceed those tolerated by the Model LF-X.
Models LF4X to 6X are made of stainless steel, which has high corrosion resistance.
basic load ratings(kN) : Basic dynamic load rating 0.42 to 20.8 / Basic static load rating 0.48 to 34.0
Spline shaft diameter (mm) :
3,4,5,6,8,10,13,16,20,25,30
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- Material and Surface Treatment
- Contamination Protection
Lubrication
- Lubrication
- QZ Lubricator
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information

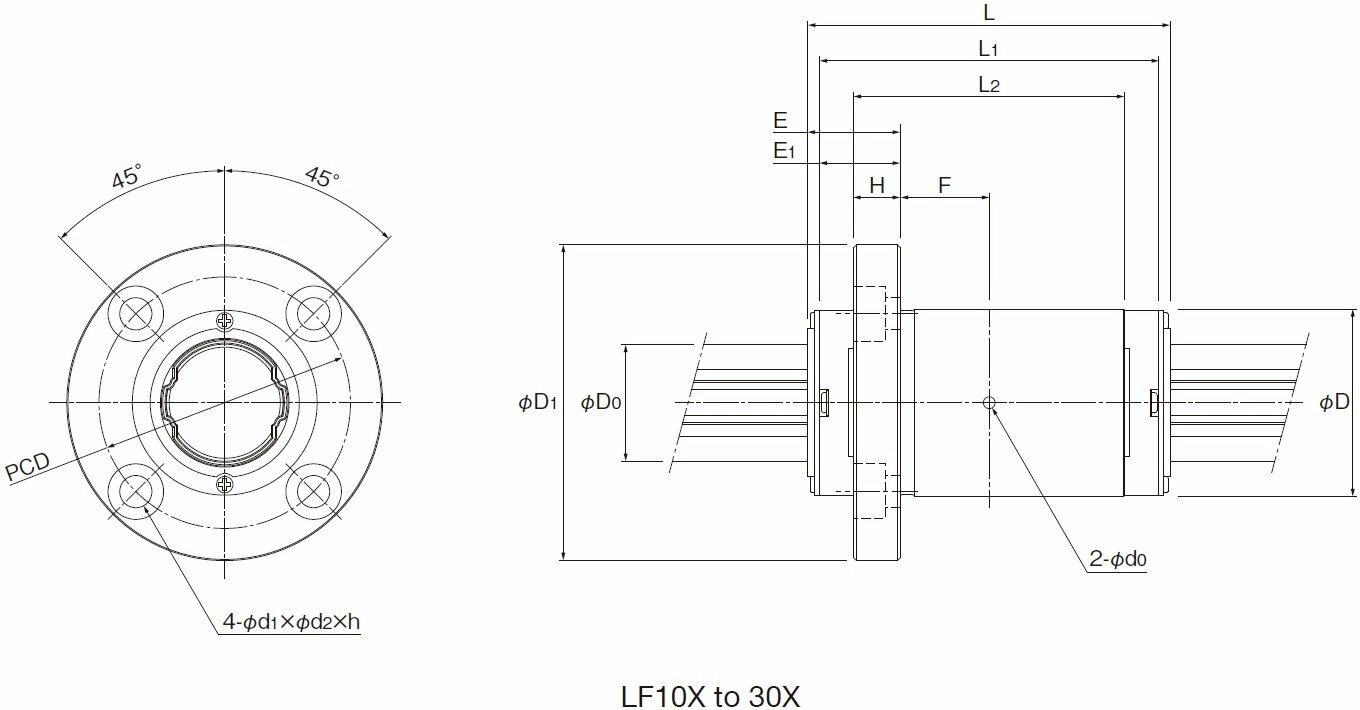

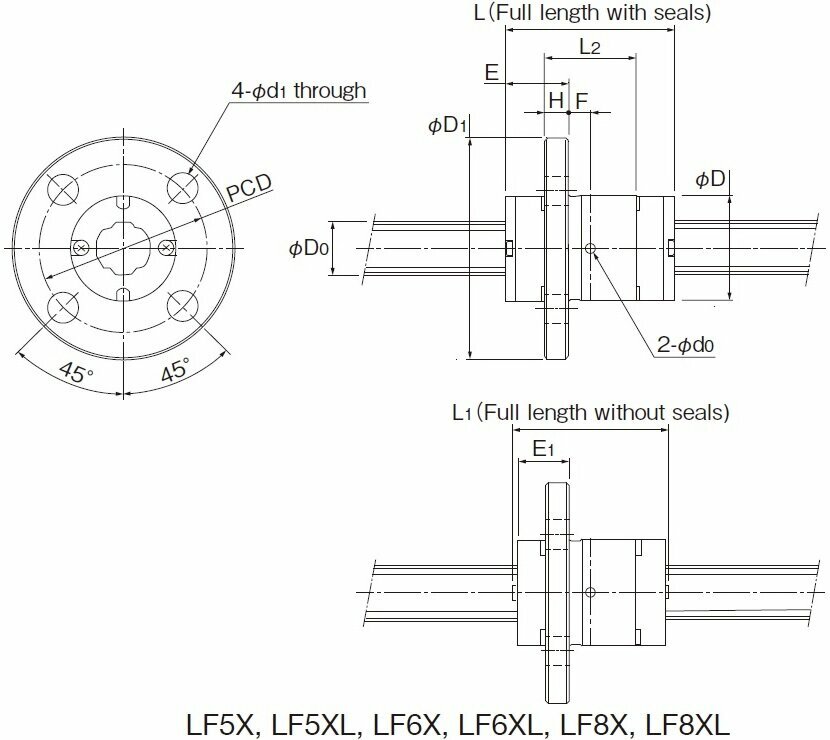

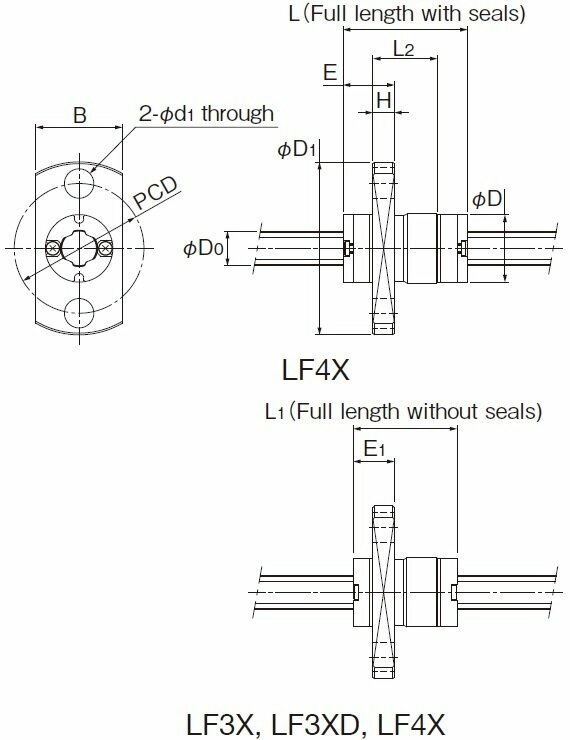

Dimensional drawing/Dimensional table
Notes on dimensional table
- Note) The mass of the spline nut does not include the seal.
Please check the spline shaft strength tests ( Studying the Spline Shaft Strength) before use.

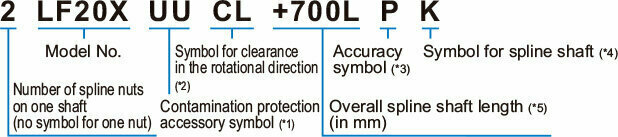

Model Number Coding
(*1) See Contamination Protection
(*2) See Selecting a Preload
(*3) See Accuracy Standard
(*4) See Spline Shaft
(*5) See Maximum Manufacturing Length by Accuracy
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
-
Easy product comparisonsHighlight feature
-
Save items for laterreview Favorites feature
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
No option tag has been selected.
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* |
Catalog Download |
Manual Download |
|---|---|---|---|---|---|
| LF 3X |
 |
 |
 |
 |
 |
| LF 3XD |
|
|
|||
| LF 4X |
|
|
|||
| LF 5X |
|
|
|||
| LF 5XL |
|
|
|||
| LF 6X |
|
|
|||
| LF 6XL |
|
|
|||
| LF 8X |
|
|
|||
| LF 8XL |
|
|
|||
| LF 10X |
|
|
|||
| LF 13X |
|
|
|||
| LF 16X |
|
|
|||
| LF 20X |
|
|
|||
| LF 25X |
|
|
|||
| LF 30X |
|
|
