Medium Torque Type Ball Spline Compact Model LFH-X Model LFH-X
The flange is similar to the Model LF-X, but flattened in two places. Compared to models with square flanges, its core height is lower, and it allows for a lighter overall design. The Model LFH-XL is suitable for moment loads or torque and overhang loads that exceed those tolerated by the Model LFH-X.
Models LFH5X and 6X are made of stainless steel, which has high corrosion resistance.
basic load ratings(kN) : Basic dynamic load rating 0.56 to 20.8 / Basic static load rating 0.85 to 34.0
Spline shaft diameter (mm) :
5,6,8,10,13,16,20,25,30
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- Material and Surface Treatment
- Contamination Protection
Lubrication
- Lubrication
- QZ Lubricator
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information

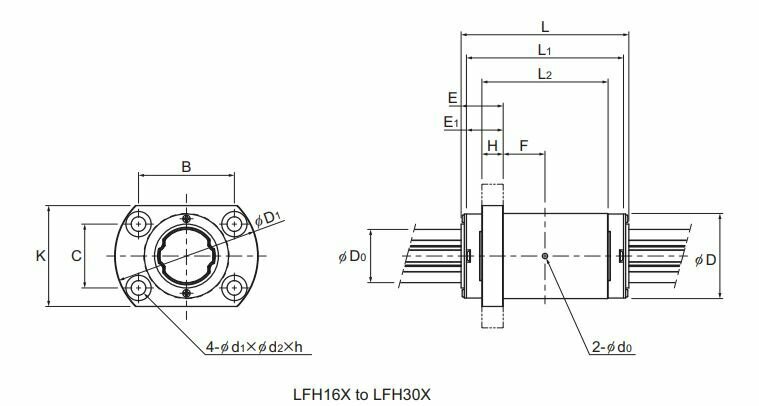

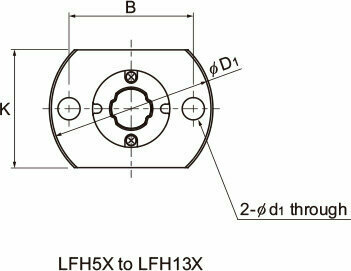

Dimensional drawing/Dimensional table
Notes on dimensional table
- Note) The mass of the spline nut does not include the seal. before use.the spline shaft strength testsPlease check

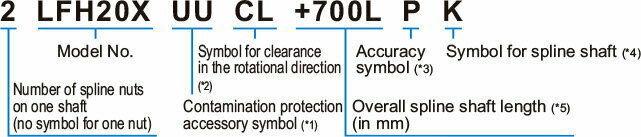

Model Number Coding
(*1) See Contamination Protection
(*2) See Selecting a Preload
(*3) See Accuracy Standard
(*4) See Spline Shaft
(*5) See Maximum Manufacturing Length by Accuracy
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
-
Easy product comparisonsHighlight feature
-
Save items for laterreview Favorites feature
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
No option tag has been selected.
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* | Catalog Download | Manual Download |
|---|---|---|---|---|---|
| LFH 5X |  |  |  |  |  |
| LFH 5XL | | | |||
| LFH 6X | | | |||
| LFH 6XL | | | |||
| LFH 8X | | | |||
| LFH 8XL | | | |||
| LFH 10X | | | |||
| LFH 13X | | | |||
| LFH 16X | | | |||
| LFH 20X | | | |||
| LFH 25X | | | |||
| LFH 30X | | |
