Model Number Coding
Model number confi gurations diff er depending on the model features. Refer to the corresponding sample model number confi guration.

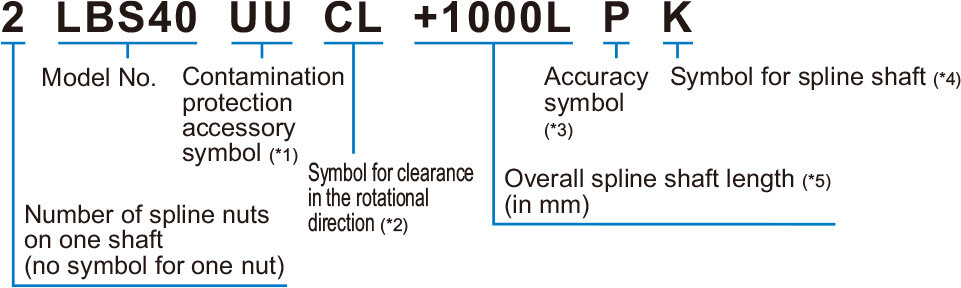

Ball Spline
Model
● Models SLS, SLS-L, SLF, LBS, LBST, LBF, LBR, LBH, LT, LF, LT-X, LF-X, LFK-X and LFH-X
- (*1)
- (*2)
-
(*3)
See accuracy symbol
-
(*4)
See symbol for spline shaft
-
(*5)
See overall spline shaft length

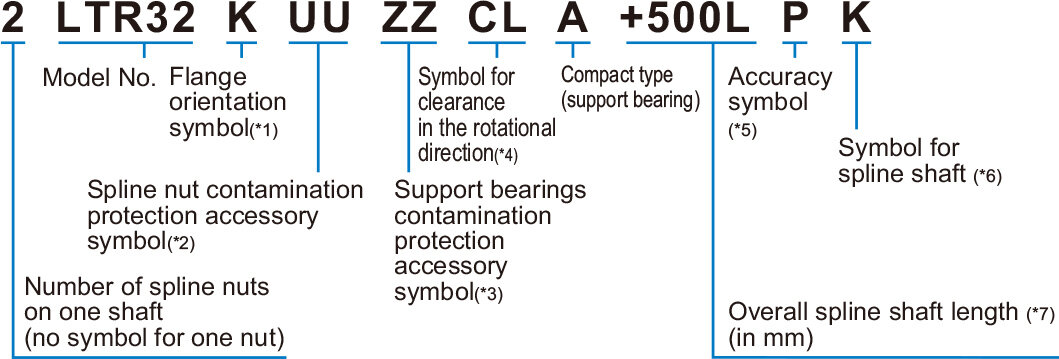

Rotary Ball Spline
Model
● Models LTR, LTR-A, LBG and LBGT
-
(*1)
No Symbol: standard K: fl ange inversed
- (*2)
- (*3)
- (*4)
-
(*5)
See accuracy symbol
-
(*6)
See symbol for spline shaft
-
(*7)
See overall spline shaft length
