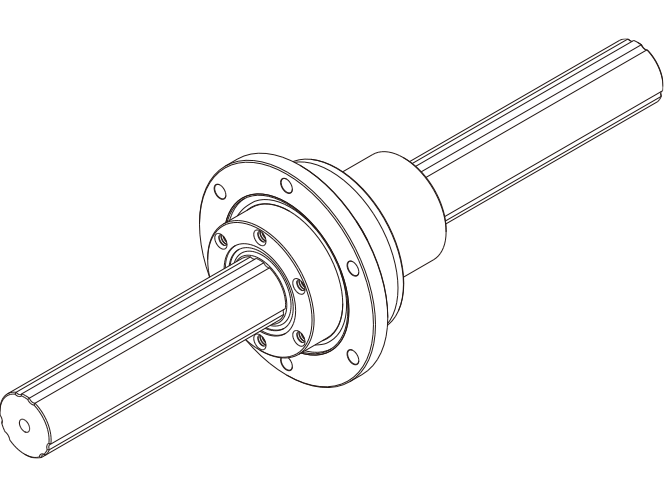

Rotary Ball Spline with Support Bearing Rotary Model LTR-A
A compact unit type whose support bearings are directly integrated with the outer surface of the spline nut.
Spline shaft diameter (mm) : 8,10,16,20,25,32,40
Types
Highlight feature tags
- Compact
- Rotary and linear motions
- Rotary type
- With support bearing
- Solid spline shaft
- Hollow spline shaft
- Compact
- Rotary and linear motions
- Rotary type
- With support bearing
- Solid spline shaft
- Hollow spline shaft
basic load ratings(kN) : Basic dynamic load rating 1.47 to 37.8 / Basic static load rating 2.55 to 60.5
Spline shaft diameter (mm) :
8,10,16,20,25,32,40
Detailed information for each model number
Dimensional drawing/Dimensional table
