Caged Ball LM Guide Global Standard Size Model SHS
Since each row of balls is arranged at a contact angle of 45°, this model can be used in all directions.
Size : 15,20,25,30,35,45,55,65
Types
Highlight feature tags

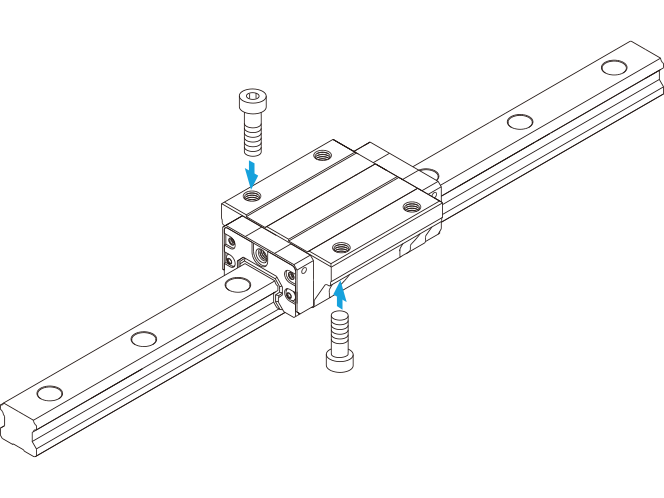

- Flange
- Long block LM Guide
- Bolts mounted from above and below
- Bolts mounted from above
- Flange
- Bolts mounted from above and below
Basic load rating (kN): Basic dynamic load rating 14.2 to 205 / Basic static load rating 24.2 to 320
Size :
15,20,25,30,35,45,55,65

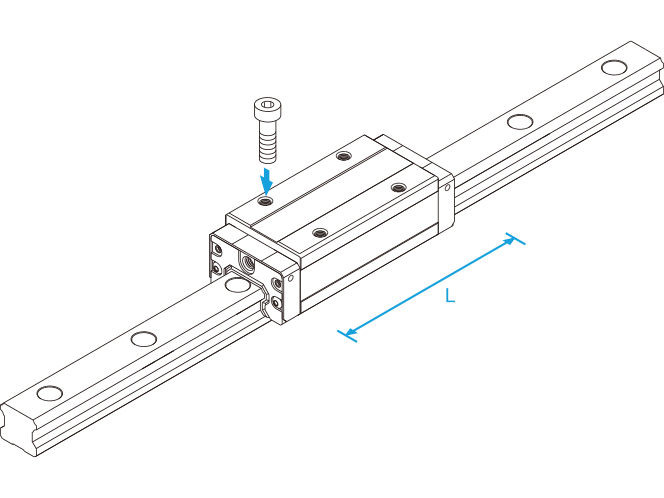

- Bolts mounted from above
Basic load rating(kN) : Basic dynamic load rating 14.2 to 205 / Basic static load rating 24.2 to 320
Size :
15,20,25,30,35,45,55,65

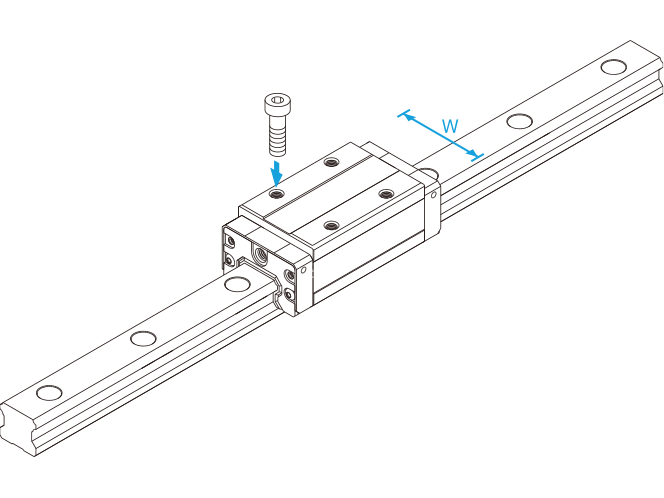

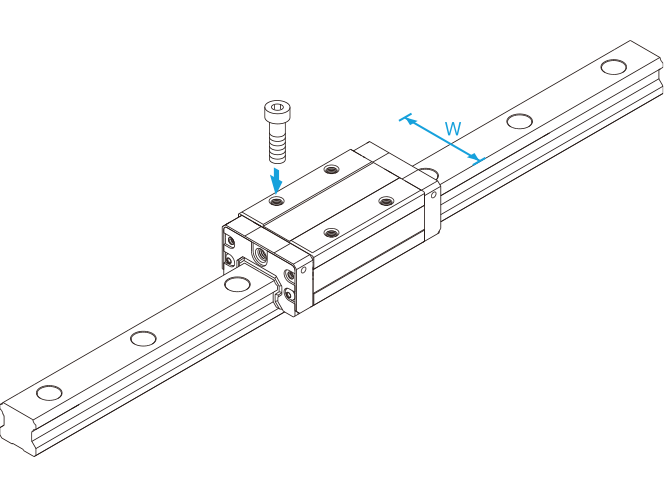

- Bolts mounted from above
Basic load rating (kN): Basic dynamic load rating 14.2 to 128 / Basic static load rating 24.2 to 197
Size :
15,25,30,35,45,55

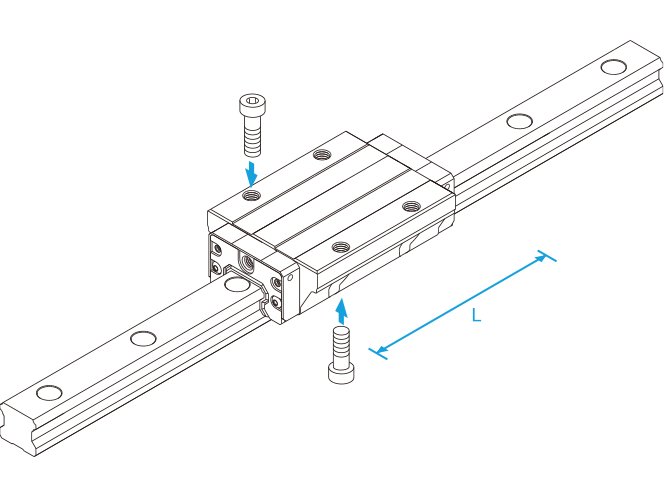

- Flange
- Long block LM Guide
- Bolts mounted from above and below
Basic load rating (kN): Basic dynamic load rating 17.2 to 253 / Basic static load rating 31.9 to 408
Size :
15,20,25,30,35,45,55,65

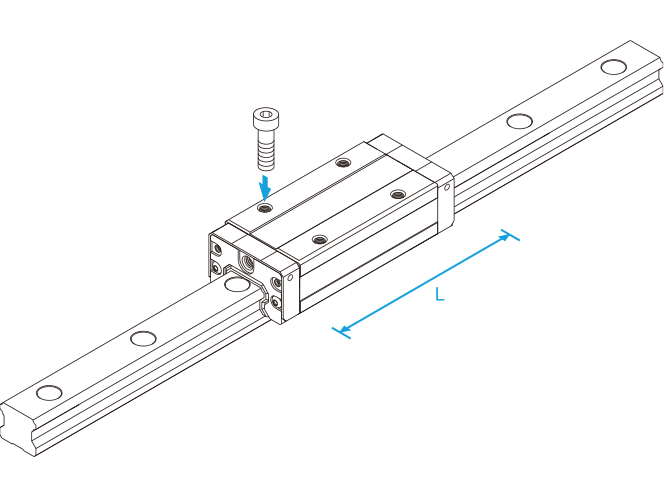

- Long block LM Guide
- Bolts mounted from above
Basic load rating (kN): Basic dynamic load rating 17.2 to 253 / Basic static load rating 31.9 to 408
Size :
15,20,25,30,35,45,55,65
- Long block LM Guide
- Bolts mounted from above
Basic load rating (kN): Basic dynamic load rating 36.8 to 161 / Basic static load rating 64.7 to 259
Size :
25,30,35,45,55
Features

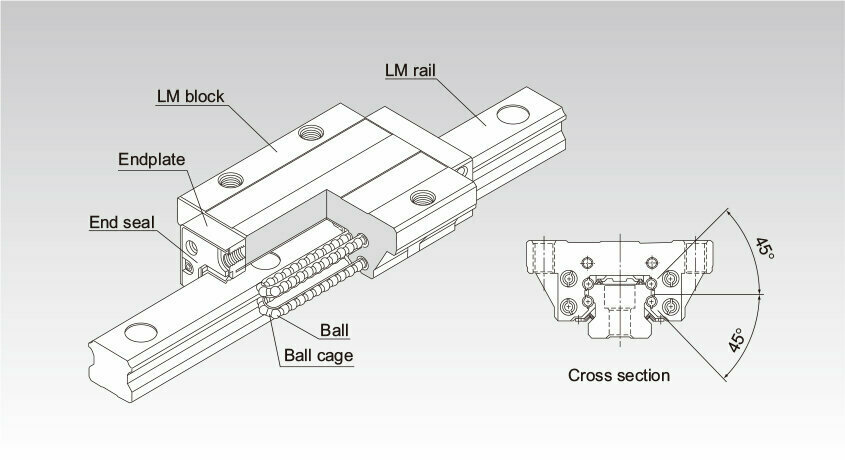

Structure and Features
Balls roll in four rows of raceways precision-ground on the LM rail and LM block and are circulated by ball cages and end plates incorporated in the LM block. Each row of balls is placed at a contact angle of 45° so that the load ratings applied to the LM block are uniform in the four directions (radial, reverse-radial, and lateral directions), enabling the LM Guide to be used in all orientations. In addition, the LM block can receive a well-balanced preload, increasing the rigidity in the four directions while maintaining a constant, low friction coefficient.
Four-Way Equal Load
Each row of balls is placed at a contact angle of 45° so that the load ratings applied to the LM block are uniform in the four directions (radial, reverse-radial, and lateral directions), enabling the LM Guide to be used in all orientations and in extensive applications.
Self-Adjustment Capability
The self-adjustment capability of the front-to-front configuration of THK’s unique circular-arc grooves (DF set) enables mounting error to be absorbed even under a preload, thus achieving highly accurate and smooth linear motion.
Global Standard Size
SHS is designed to have dimensions nearly equal to the Full-Ball LM Guide Model HSR, the de facto global standard with which THK pioneered the LM System.
Stainless Steel Type also Available
A special type whose LM block, LM rail, and balls are made of stainless steel is also available. Applicable only to models 15 through 25.
Detailed information for each model number
Dimensional drawing/Dimensional table
