Caged Ball LM Guide Super-Heavy Load (Radial) Model SVR for Machine Tools

Model SVR has higher rigidity and load-bearing capacity than other models in the Caged-Ball LM Guide series.

  • Long-term maintenance free
  • High rigidity
  • High accuracy
  • Heavy load
  • Ultra-heavy load
  • Damping
  • Radial
  • For machine tools

Size : 25,30,35,45,55,65

Types

Highlight feature tags

  • Flange
  • Long block LM Guide
  • Bolts mounted from above and below
  • Bolts mounted from above
Model SVR-R
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 48.2 to 271 / Basic static load rating 68.1 to 352
Size : 25,30,35,45,55,65

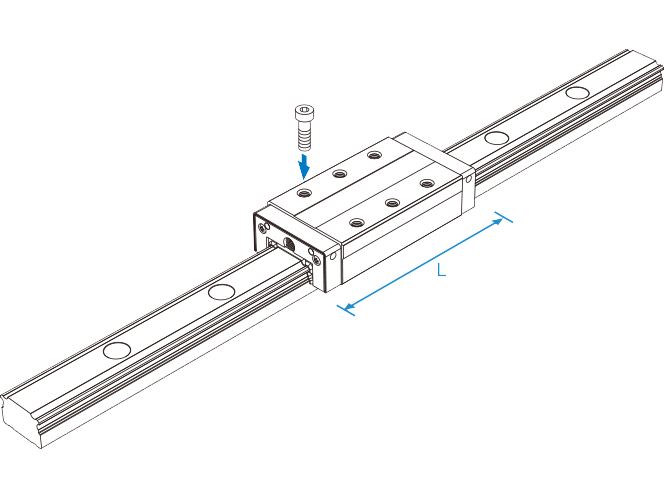

Model SVR-LR
  • Long block LM Guide
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 57 to 339 / Basic static load rating 86.3 to 484
Size : 25,30,35,45,55,65

Model SVR-C
  • Flange
  • Bolts mounted from above and below

Basic load rating (kN): Basic dynamic load rating 48.2 to 271 / Basic static load rating 68.1 to 352
Size : 25,30,35,45,55,65

Model SVR-LC
  • Flange
  • Long block LM Guide
  • Bolts mounted from above and below

Basic load rating (kN): Basic dynamic load rating 57 to 339 / Basic static load rating 86.3 to 484
Size : 25,30,35,45,55,65

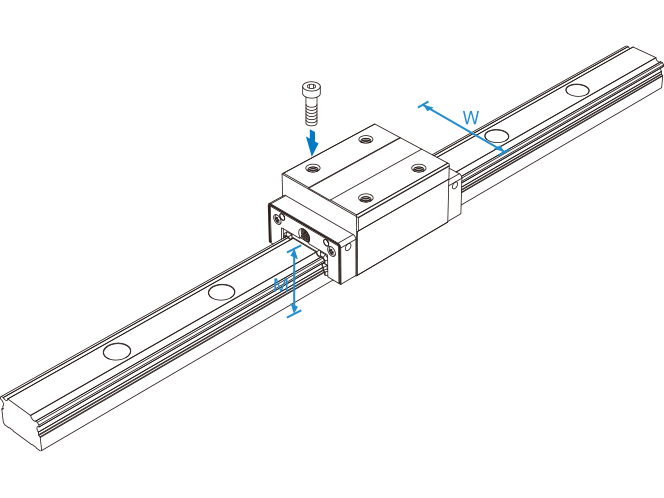

Model SVR-RH
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 89.6 to 177 / Basic static load rating 116 to 235
Size : 35,45,55

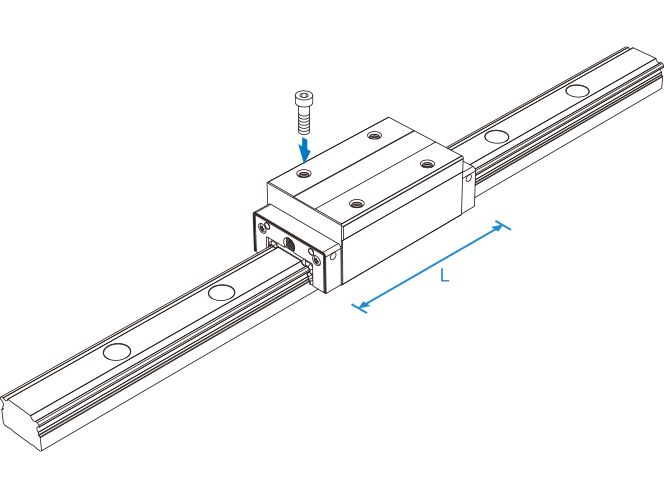

Model SVR-LRH
  • Long block LM Guide
  • Bolts mounted from above

Basic load rating (kN): Basic dynamic load rating 112 to 214 / Basic static load rating 160 to 309
Size : 35,45,55

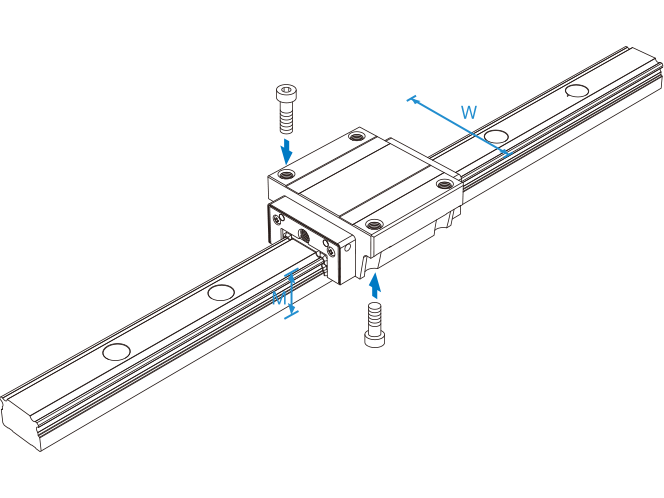

Model SVR-CH
  • Flange
  • Bolts mounted from above and below

Basic load rating (kN): Basic dynamic load rating 89.6 to 177 / Basic static load rating 116 to 235
Size : 35,45,55

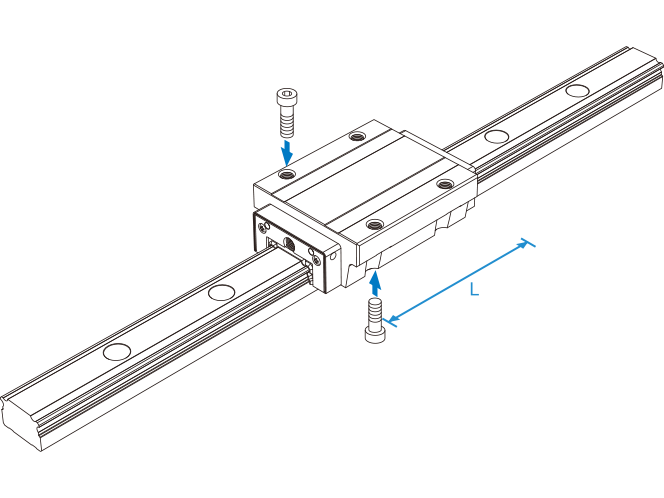

Model SVR-LCH
  • Flange
  • Long block LM Guide
  • Bolts mounted from above and below

Basic load rating (kN): Basic dynamic load rating 112 to 214 / Basic static load rating 160 to 309
Size : 35,45,55

Features

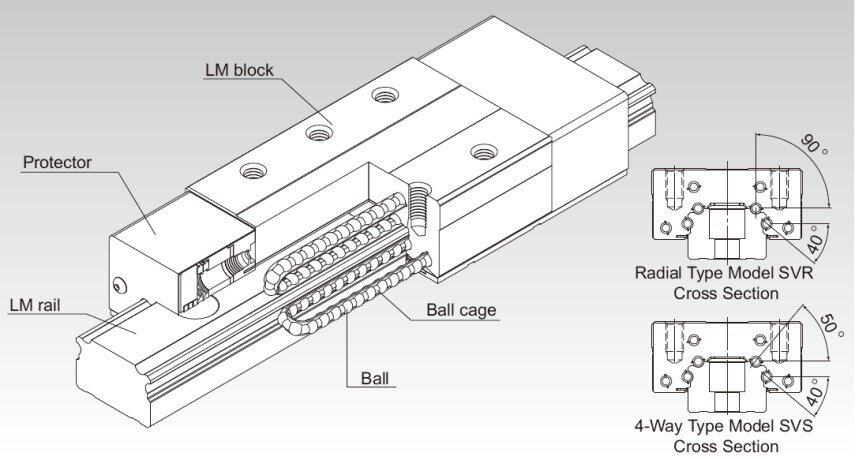

Structure and Features

Models SVR/SVS have higher rigidity and load-bearing capacity than other models in the Caged-Ball LMGuide series. In addition, they maintain the performance of LM Guide and achieve high reliability by enhancing the dust-control performance with a wide range of options that take into account the service environments of machine tools and other machinery.

* Since models SVR/SVS have very high rigidity, their structures are easily affected by the misalignment of the mounting surface and the installation error. If affected by these factors, their service life may be shortened or their motion may be disrupted. When considering using these models, contact THK.

Super Heavy Load, Increased Damping

The raceway of models SVR/SVS adopts a circular-arc deep groove with a curvature approximate to the ball diameter. Since the ball contact area increases as the applied load increases, a large load carrying capacity is achieved and damping is also improved.

Increased Dust-proof Performance

The foreign material removal function is improved with a newly developed protector to strengthen the dust-proof performance. In addition, use of a side scraper reduces the entrance of foreign material into the LM block, thus maintaining the LM Guide performance for a long period even in adverse environments.

High Rigidity

Models SVR/SVS achieve the highest rigidity among the Caged Ball LM Guide series. Both the radial type SVR and the 4-way equal load type SVS are available for the same size. Depending on the intended use, you can select either type.

Wide Array of Options

Various options are available, including end seal, inner seal, side seal, Laminated Contact Scraper LaCS, protector, side scraper and Cap GC, to respond to diversified service environments.

Models SVR/SVS Contamination Protection Performance Evaluation

Models SVR/SVS maintain their performance under severe conditions with fine particles or liquid contamination.

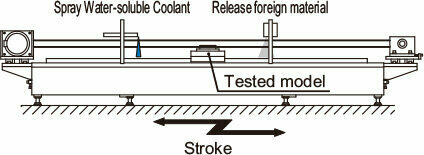

Test conditions

Item

Description

Tested model

SVS45LR1TTHHYYC1+2880LP×2set

Maximum speed

200m/min

Stroke

2500mm

Grease used

THK AFB-LF Grease

Environmental
conditions

Foreign
material

Type: Metal powder (Atomized Powder)(particle diameter: 125 μm or less)

Amount: 0.4 g/20 min

Coolant

Water-soluble coolant

Amount: 0.2 cc/10 s

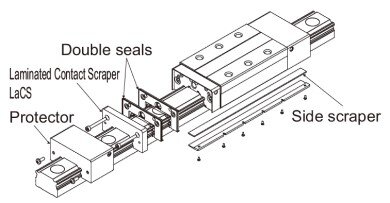

Models SVR/SVS with option (TTHHYY option)
TTHHYY Option:
Double Seals Laminated Contact Scraper LaCS Protector Side Scraper

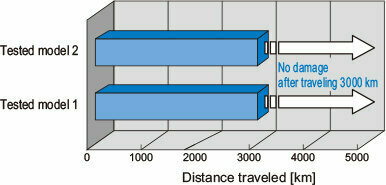

Test Result

Models SVR/SVS maintain their performance even after traveling 3000 km under severe conditions with exposure to coolant and contamination.
