Full-Ball LM Guide Straight-and-Curved LM Guide Model HMG Model HMG

The flange of the LM block has tapped holes. Can be mounted from the top or the bottom.

Basic load rating (kN): Basic dynamic load rating 2.56 to 66.2 / Basic static load rating 4.23 to 66.7
Size : 15,25,35,45,65

Precautions on Use

Select display items

Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.

Detailed information

THK Online Services
Member-Exclusive Content

These contents can be accessed

after registering as a member.

Benefit 1: Useful features

Easy product comparisonsHighlight feature
Save items for laterreview Favorites feature

Benefit 2: Exclusive content

Products	Contents
LM Guide	LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc.
Ball Screw	Axial clearance, maximum manufacturing length of shaft, etc.
Actuator	Movable part mass, etc.

Optional

Block Compatible Option

Seal and Metal Scraper

Rail Compatible Option

Cover

Cap

Block Compatible Option

Block and Rail Compatible Option

Surface Treatment

Material

Show selected item

Display result

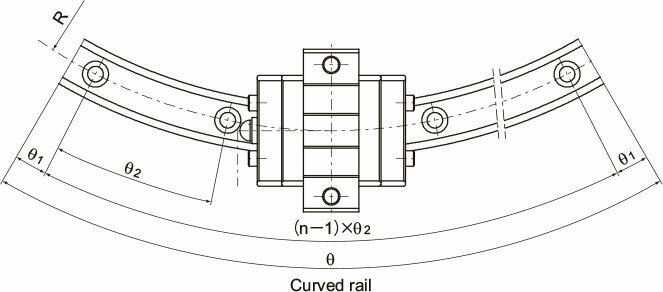

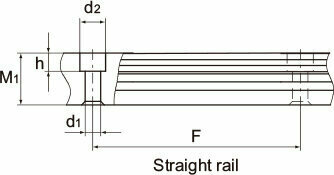

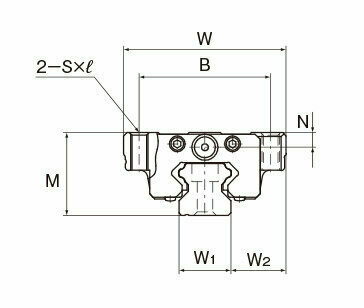

Detailed information: Dimensional drawing/Dimensional table

Optional

Detailed information

Dimensional drawing/Dimensional table

Notes on dimensional table

Note) When a moment is applied where one LM block is specified per axis, the LM block may experience non-smooth motion.
We recommend that multiple LM blocks be used per axis when a moment is applied.
Static permissible moment (straight/curved components): the static permissible moment value with 1 LM block (see Table1 )

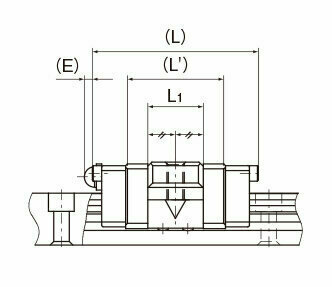

Total block length L: The total block length L shown in the table is the length including the straight-curved seal (code: UU).

Table1 Static Permissible Moments of Model HMG

Unit: kN･m

Model No.
Model No.	Straight section	Curved section	Straight section	Curved section	Straight section	Curved section
HMG 15	0.008	0.007	0.008	0.01	0.027	0.003
HMG 25	0.1	0.04	0.1	0.05	0.11	0.07
HMG 35	0.22	0.11	0.22	0.12	0.29	0.17
HMG 45	0.48	0.2	0.48	0.22	0.58	0.34
HMG 65	1.47	0.66	1.47	0.73	1.83	0.94

Notes on Ordering

[Order units]

Note that the number of items that constitute one set differs depending on the type of LM guide. Check the sample model number configurations and the accompanying notes.

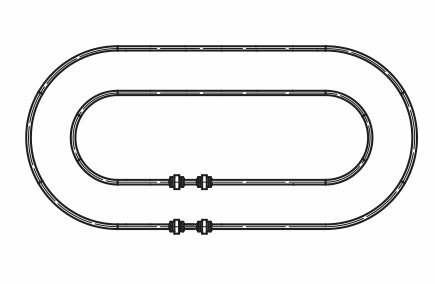

Sample model HMG orders

Note)
When ordering model HMG, attach a reference diagram clearly showing the positioning of the LM block and LM rail.

THK Online Services
Member-Exclusive Content

These contents can be accessed

after registering as a member.

Benefit 1: Useful features

Easy product comparisonsHighlight feature
Save items for laterreview Favorites feature

Benefit 2: Exclusive content

Products	Contents
LM Guide	LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc.
Ball Screw	Axial clearance, maximum manufacturing length of shaft, etc.
Actuator	Movable part mass, etc.

Optional

Check detailed information with the tool

Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.

Model No.	Designer*	Life Calculator*	CAD Download*	Catalog Download	Manual Download
HMG 15A
HMG 25A
HMG 35A
HMG 45A
HMG 65A

*marks are not available for guest members.
