Cross-Roller Guide/Ball Guide Cross-Roller Guide with Cage Alignment System VRG

Adopts a proprietary rack and pinion system to prevent ball cage misalignment and achieve stable motion.Features more rollers than its predecessor, the Model VR, and achieves a high basic load rating.Possesses the same mounting dimensions as the Model VR

Precautions on Use

Types

Highlight feature tags

Basic load rating (kN) : Basic dynamic load rating 0.83 to 4.06 ／ Basic static load rating 1.09 to 8.15

Basic load rating (kN) : Basic dynamic load rating 2.47 to 11.4 ／ Basic static load rating 3.31 to 23.1

Basic load rating (kN) : Basic dynamic load rating 7.07 to 23.6 ／ Basic static load rating 10.4 to 48.4

Basic load rating (kN) : Basic dynamic load rating 16.4 to 54.7 ／ Basic static load rating 23.0 to 107

Basic load rating (kN) : Basic dynamic load rating 0.83 to 4.06 ／ Basic static load rating 1.09 to 8.15

Basic load rating (kN) : Basic dynamic load rating 2.47 to 11.4 ／ Basic static load rating 3.31 to 23.1

Basic load rating (kN) : Basic dynamic load rating 7.07 to 23.6 ／ Basic static load rating 10.4 to 48.4

Features

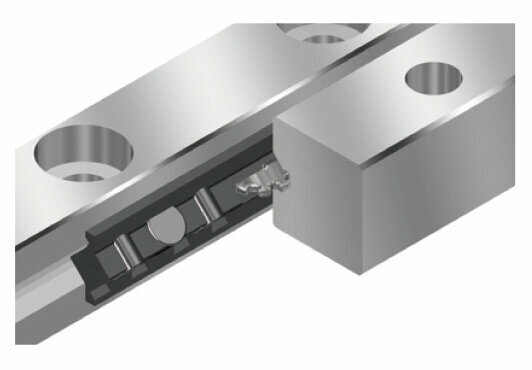

Prevents cage misalignment

THK’s proprietary rack and pinion mechanism prevents cage misalignment caused by impacts and the vibrations and inertia of running equipment.

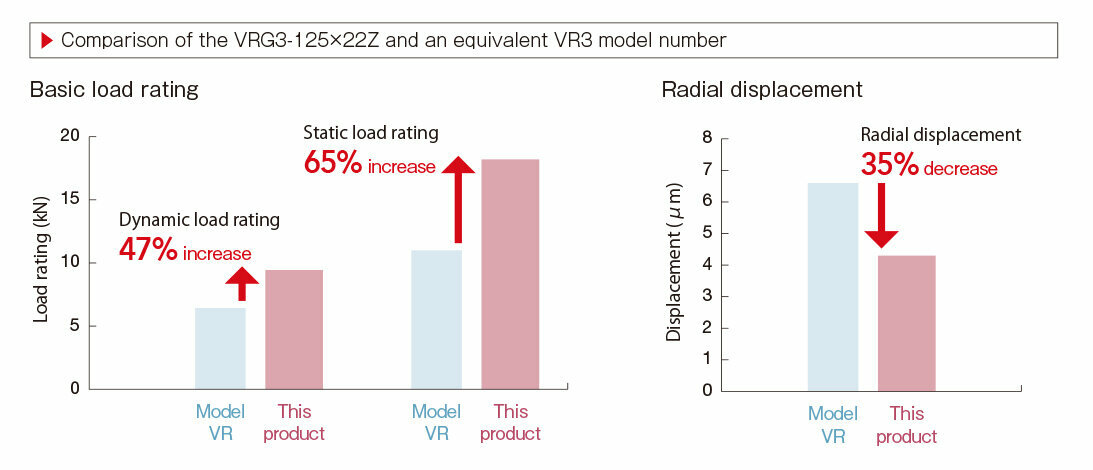

Long service life and high rigidity

Compared to the current Model VR, the Cross-Roller Guide with Cage Alignment System has more rollers and drastically improved basic load rating and rigidity.

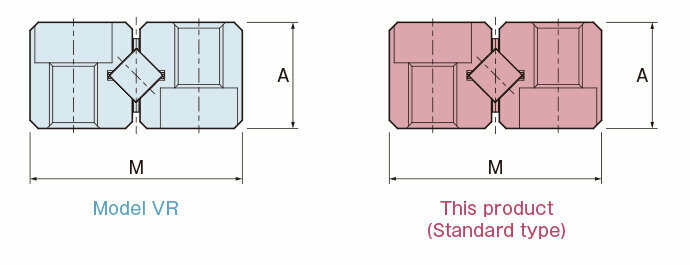

Interchangeable mounting dimensions

The standard Cross-Roller Guide with Cage Alignment System can easily replace the current Model VR, as it has the same mounting dimensions.

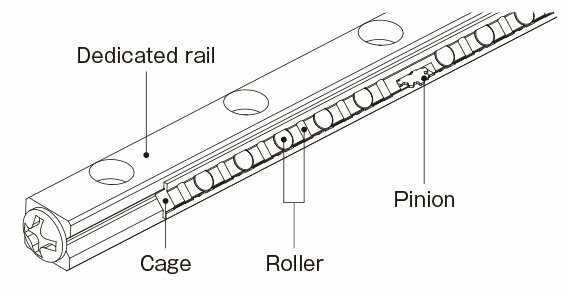

Structure of the Cross-Roller Guide with Cage Alignment System

This lightweight, finite stroke linear guide product is composed of precision rollers held in an orthogonal orientation by a cage that is assembled onto a dedicated rail. As a result, it can bear loads in every direction. It also has a high degree of rigidity and, being made of stainless steel, is extremely corrosion- resistant. Additionally, this product achieves accurate motion and maintains cage alignment through the use of a rack and pinion system.

Lineup

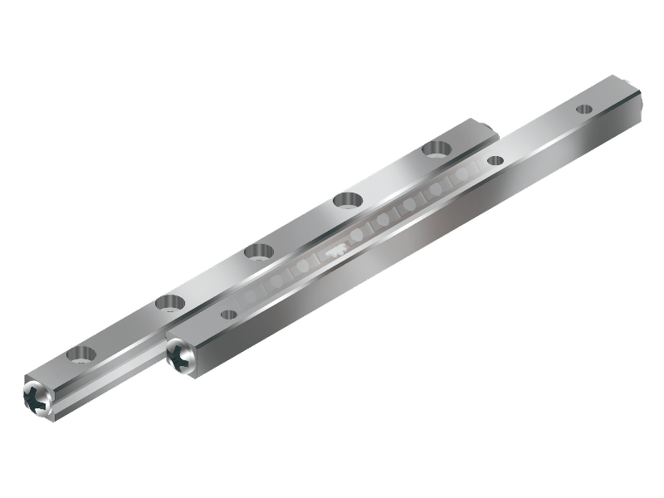

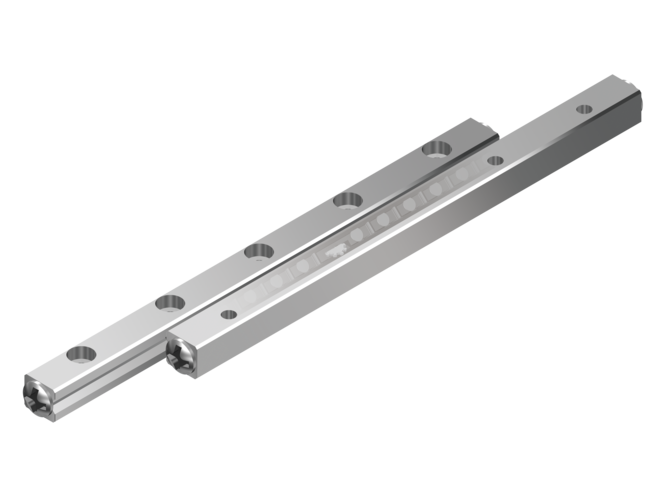

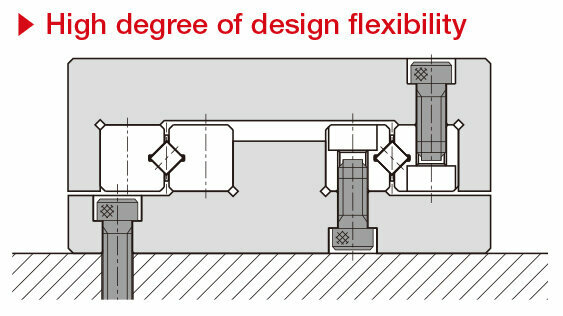

Standard type

The standard type can replace the Model VR because their mounting dimensions are interchangeable. It can also be installed with the desired spacing, making it a product that offers a high degree of design flexibility.

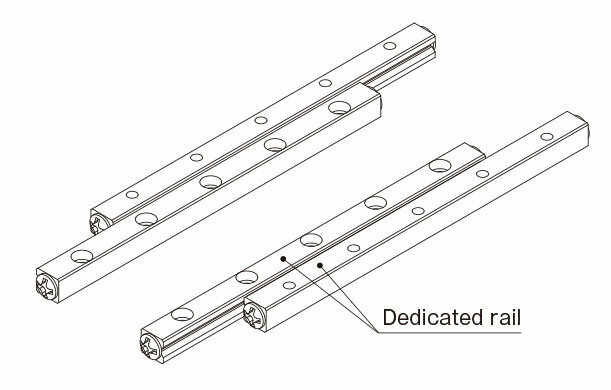

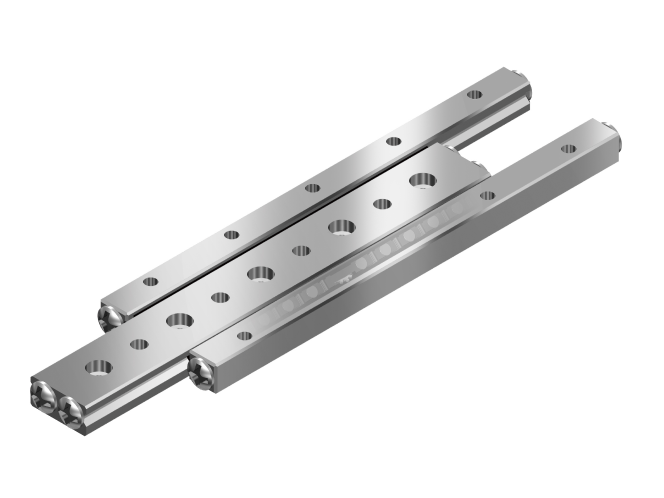

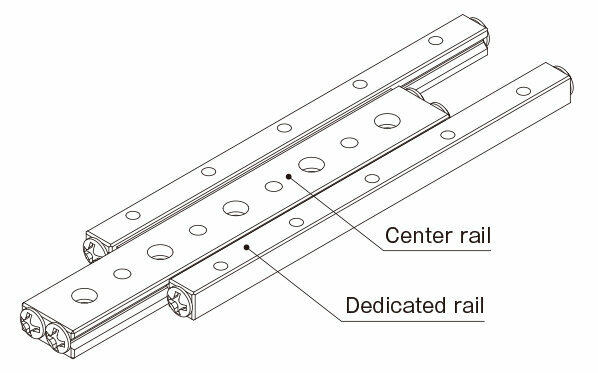

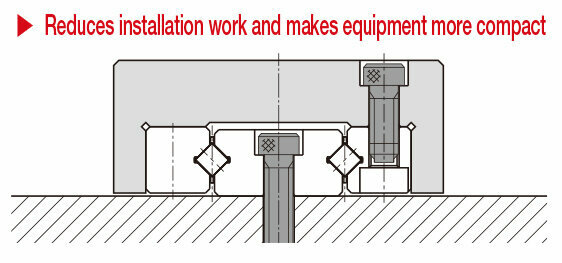

Center rail type

The center rail type combines the two inner rails of the standard type into a single rail. This makes installation easier and allows for the construction of a table unit with a more compact width.

Detailed information for each model number

Dimensional drawing/Dimensional table
