Cross-Roller Guide/Ball Guide Ball Guide Model VB

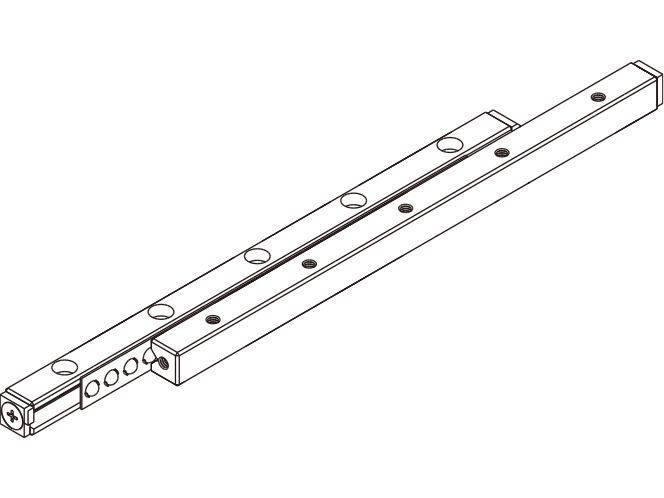

Model VB is a low-friction, high-accuracy, finite LM system consisting of precision steel balls, arranged in short pitches in a ball cage model B, and a dedicated rail model V.
Types
Highlight feature tags
- High corrosion resistance
- Long service life
Ball Cage Model B
- High corrosion resistance
- Long service life
Basic load rating (per ball) (kN): Basic dynamic load rating 7.84 to 490 / Basic static load rating 21.6 to 2160
Detailed information for each model number
Dimensional drawing/Dimensional table
