Cross-Roller Guide/Ball Guide Cross-Roller Guide Model VR

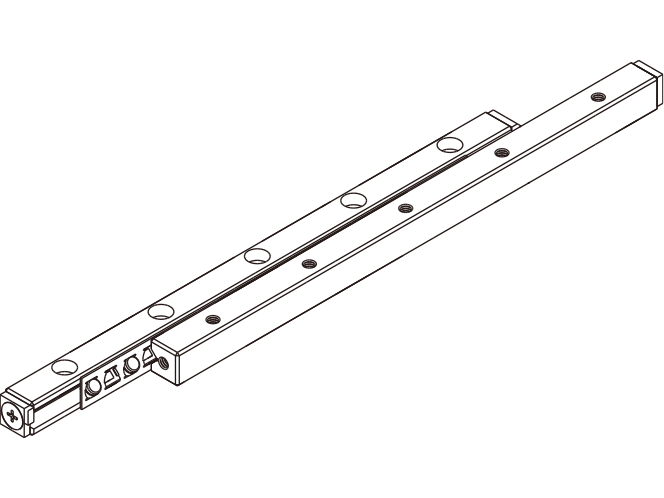

In model VR, precision rollers are orthogonally aligned one after another in a roller cage that is combined with a dedicated rail having a raceway cut into a V-shape groove. When two units of the Cross-Roller Guide are mounted in parallel, the guide system is capable of receiving loads in the four directions. In addition, since the Cross-Roller Guide can be given a preload, a clearance-free, highly rigid and smooth slide mechanism is achieved.

Precautions on Use

Types

Highlight feature tags

Basic load rating (per roller) (kN): Basic dynamic load rating 0.152 / Basic static load rating 0.153

Basic load rating (per roller) (kN): Basic dynamic load rating 0.276 / Basic static load rating 0.271

Basic load rating (per roller) (kN): Basic dynamic load rating 0.639 / Basic static load rating 0.611

Basic load rating (per roller) (kN): Basic dynamic load rating 1.38 / Basic static load rating 1.35

Basic load rating (per roller) (kN): Basic dynamic load rating 3.78 / Basic static load rating 3.78

Basic load rating (per roller) (kN): Basic dynamic load rating 9.53 / Basic static load rating 9.48

Basic load rating (per roller) (kN): Basic dynamic load rating 17.6 / Basic static load rating 17.2

Basic load rating (per roller) (kN): Basic dynamic load rating 27.9 / Basic static load rating 26.8

Basic load rating (per roller) (kN): Basic dynamic load rating 40.9 / Basic static load rating 38.8

Detailed information for each model number

Dimensional drawing/Dimensional table
