Guide Ball Bushing Model LG Model LG-L
Model LG-L is a long type in which the overall length of the LG nut is longer than that of model LG-S to increase the load carrying capacity.
Basic load rating (kN): Basic dynamic load rating 466 to 1203 / Basic static load rating 757 to 1916
ShaftDiameter(mm) :
4,6,8
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature
-
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
Products | Contents |
---|---|
LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- Dust prevention
Lubrication
- Lubrication
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information
Dimensional drawing/Dimensional table
Notes on dimensional table

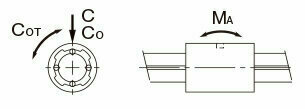

- Note) The basic load ratings each indicate the value when one row of balls receiving a load are directly under the load.
The permissible torques each represent a reference value when the radial clearance is maximum (+10μm).
The permissible moments each indicate a reference value when the radial clearance is the maximum (+10μm) with one row of balls receiving a load being directly under the load.

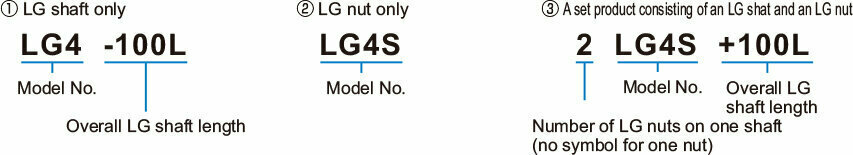

Model Number Coding
- Note) Model LG guide ball bushing available as LG shaft 1, or the LG nut 2 separate.
A set consisting of an 3 LG shaft + an LG nut is also available if so desired.
A special radial clearance, designated grease application (standard type is applied only with antirust oil) and surface treatment (THK AP-C treatment, THK AP-CF treatment, THK AP-HC treatment) are also available.
Contact THK for details.
