Guide Ball Bushing Model LG Model LG-S
In this type, the diameter and the length of the LG nut are the same as that of Linear Bushing model LM. This type is dimensionally interchangeable with model LM.
Basic load rating (kN): Basic dynamic load rating 335 to 796 / Basic static load rating 473 to 1065
ShaftDiameter(mm) :
4,6,8
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- Dust prevention
Lubrication
- Lubrication
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information

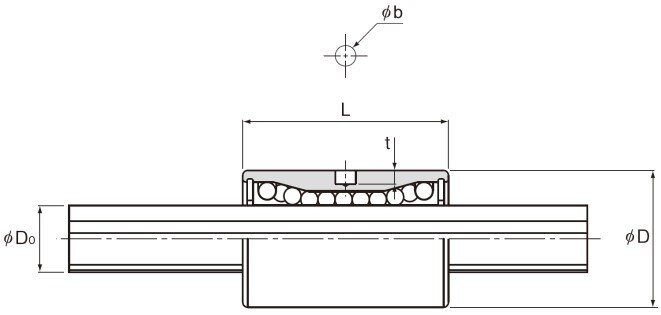

Dimensional drawing/Dimensional table
Notes on dimensional table
- Note) The basic load ratings each indicate the value when one row of balls receiving a load are directly under the load.

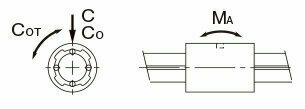

The permissible torques each represent a reference value when the radial clearance is maximum (+10μm).
The permissible moments each indicate a reference value when the radial clearance is the maximum (+10μm) with one row of balls receiving a load being directly under the load.

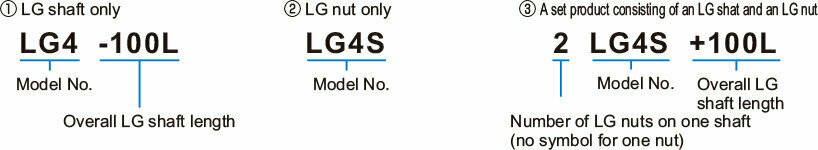

Model Number Coding
- Note) Model LG guide ball bushing available as LG shaft 1, or the LG nut 2 separate.
A set consisting of an 3 LG shaft + an LG nut is also available if so desired.
A special radial clearance, designated grease application (standard type is applied only with antirust oil) and surface treatment (THK AP-C treatment, THK AP-CF treatment, THK AP-HC treatment) are also available.
Contact THK for details.
