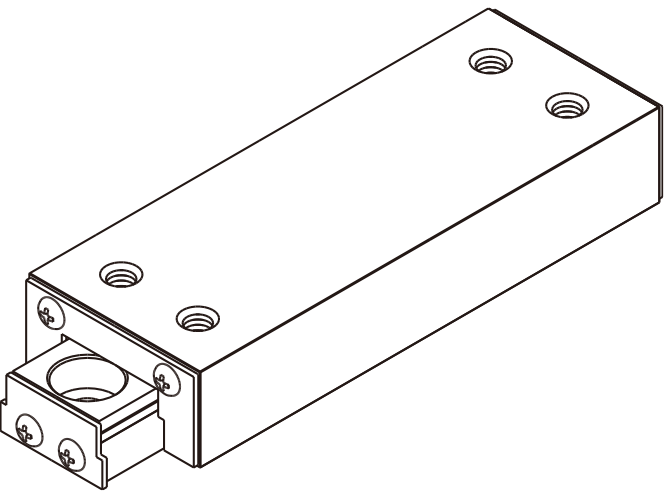

Linear Ball Slide Model LS
Model LS is a unit-type linear system for finite motion that has a structure where balls are arranged between the base and the slider via a needle roller raceway.It is incorporated with a stopper mechanism,thus to prevent damage deformation caused by collision between the cage and the endplate.
Note) Do not use the stopper as a mechanical stopper.
Types
Highlight feature tags
- Lightweight
- Compact
- High corrosion resistance
- Low friction (other linear motion guides)
- Lightweight
- Compact
- High corrosion resistance
- Low friction (other linear motion guides)
Basic load rating N : Basic dynamic load rating 39.2 to 157 / Basic static load rating 68.6 to 275
Detailed information for each model number
Dimensional drawing/Dimensional table
