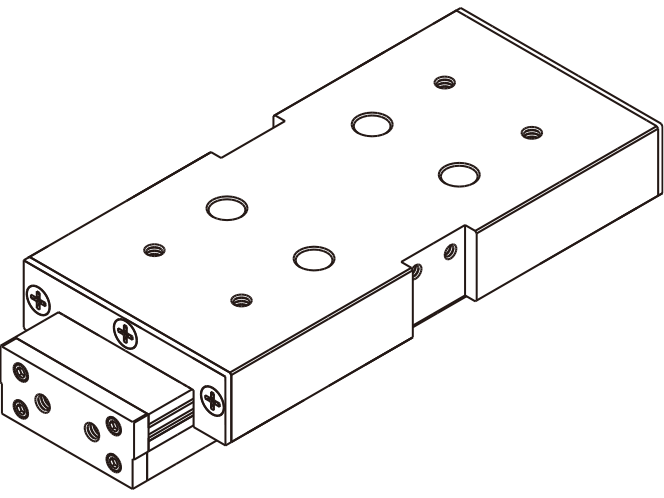

Linear Ball Slide Model LSC
Model LSC contains an air cylinder for drive inside the base. Feeding air from the two ports on the side face of the base allows the slide to perform reciprocating motion. Since the cylinder is of double-acting type, horizontal traveling speed can be adjusted using the speed controller. The cylinder and the piston are made of a corrosion resistant aluminum alloy, and their surfaces are specially treated to increase wear resistance and durability. Additionally, the cage has a rack and pinion mechanism, thus enabling the cage to operate without slipping. Air-feeding ports for piping are provided on one side face, ensuring a certain degree of operability and easy assembly even if the installation site has a limited space and is complex. The table on the right shows the specifications of the air cylinder incorporated in model LSC.
Note) Do not use the stopper as a mechanical stopper.
Types
Highlight feature tags
- Lightweight
- Compact
- High corrosion resistance
- With cylinder
- Low friction (other linear motion guides)
- Lightweight
- Compact
- High corrosion resistance
- With cylinder
- Low friction (other linear motion guides)
Basic load rating kN : Basic dynamic load rating 392 to 794 / Basic static load rating 676 to 1350
Detailed information for each model number
Dimensional drawing/Dimensional table
