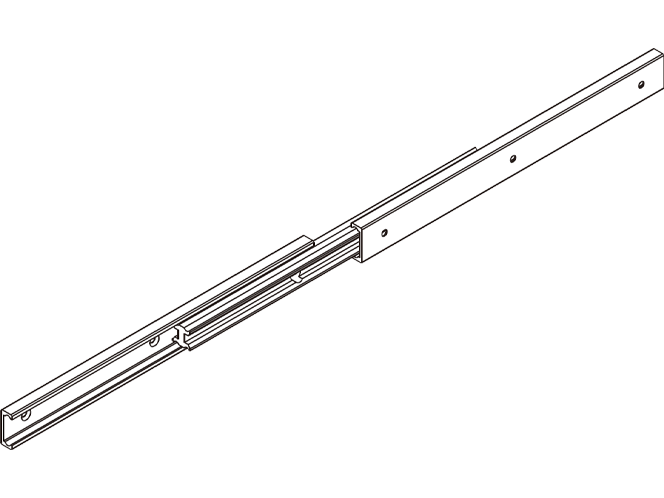

Slide Rail Double Slide Model FBL (for Medium Loads) Model D20
The most compact and lightweight double slide in the aluminum alloy series. Suitable for locations within magnetic fi elds, locations requiring rust-resistant materials, and locations where appearance is a factor.
