Slide Rail Single Slide Model E Model E15

A compact and lightweight single slide from the aluminum alloy series. Suitable for locations within magnetic fi elds, locations requiring rustresistant materials,and locations where appearance is a factor.

  • Compact
  • Thin type
  • High corrosion resistance
  • Light load
  • Single slide
  • Aluminum

Select display items

Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.

  • Select all
  • Deselect all

Detailed information

    THK Online Services
    Member-Exclusive Content

    These contents can be accessed

    after registering as a member.

    Log in/Register Click here for THK Online Services details

    Benefit 1: Useful features

    • Easy product comparisonsHighlight feature
    • Save items for laterreview Favorites feature

    Benefit 2: Exclusive content

    Products Contents
    LM Guide LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc.
    Ball Screw Axial clearance, maximum manufacturing length of shaft, etc.
    Actuator Movable part mass, etc.

Display result

Detailed information

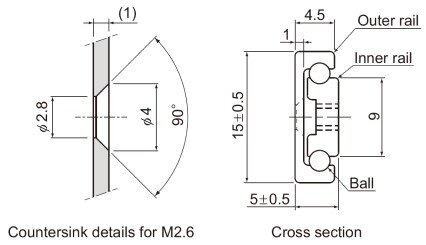

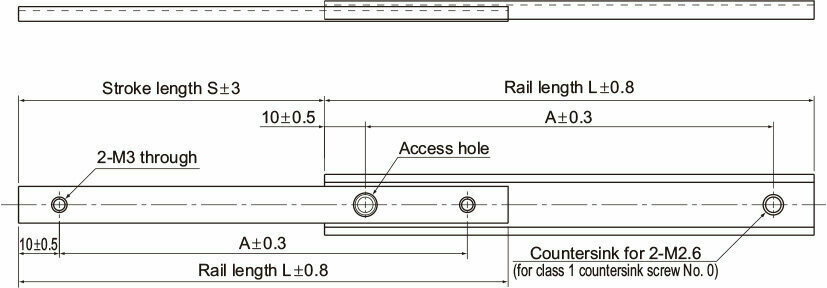

Dimensional drawing/Dimensional table

Detailed information

Dimensional drawing/Dimensional table

Notes on dimensional table
  • Note) The Permissible Load and Mass each indicate when used as a pair of 2 units.
