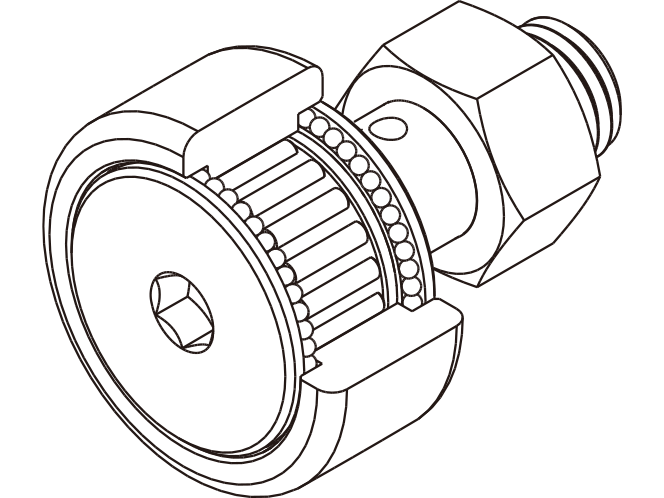

Cam Follower Containing Thrust Balls Model CFN-R-A

On the inside, this Cam Follower model is equipped with thrust-load ball bearings.This effectively prevents friction and wear on the slip surface when a thrust load occurs due to faulty installation or the like.

  • Containing thrust balls

Studdiameter(mm) : 5,6,8,10,12

Types

Highlight feature tags

  • Containing thrust balls
Model CFN-R-A
  • Containing thrust balls

Basic load rating kN : Basic dynamic load rating 3.14 to 7.87 / Basic static load rating 2.77 to 9.79
Studdiameter(mm) : 5,6,8,10,12

Detailed information for each model number

Dimensional drawing/Dimensional table
