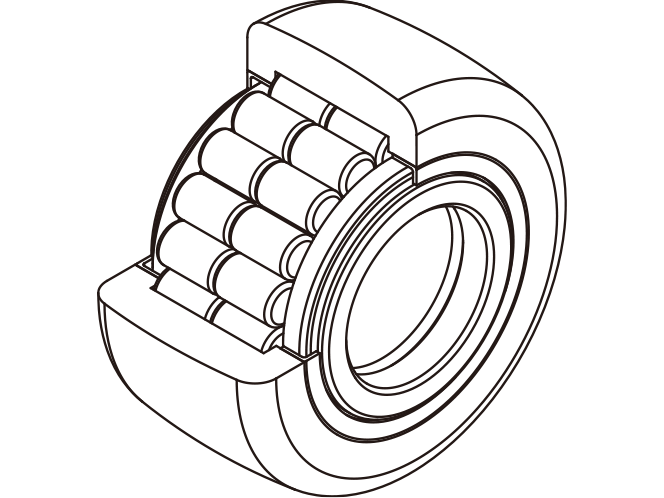

Roller Follower Double-row Cylindrical Rollers Model NURT
This model, which employs a double row of cylindrical rollers, can accommodate high radial loads.
Inner diameter (mm) : 15,17,20,25,30,35,40,45,50
Types
Highlight feature tags
- With side plates
- Double-row cylindrical
- With side plates
- Double-row cylindrical
Basic load rating kN : Basic dynamic load rating 23.4 to 96.3 / Basic static load rating 27.2 to 149
Inner diameter (mm) :
15,17,20,25,30,35,40,45,50
Detailed information for each model number
Dimensional drawing/Dimensional table
