Roller Follower Non-separable Type Model NART-R Model NART-R
This model is a non-separable type of bearing system whose inner ring is fixed to the side plates. Since the circumference of the outer ring is spherically ground, it helps lighten a biased load
(symbol R). (Model number of the type attached with seals is NART-UUR.)
Basic load rating kN with cage: Basic dynamic load rating 2.84 to 48.3 / Basic static load rating 1.18 to 95.7
Basic load rating kN full rollers : Basic dynamic load rating 6.46 to 84.4 / Basic static load rating 7.81 to 200
Innerdiameter(mm) :
5,6,8,10,12,15,17,20,25,30,35,40,45,50
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- With/without a seal
Rustprevention
- Type of material
Other
- Roller Guide
- Outer ring outer surface configuration
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information

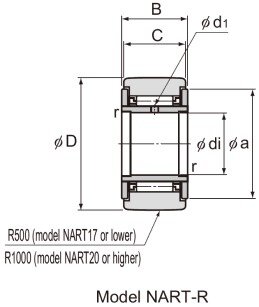

Dimensional drawing/Dimensional table
Notes on dimensional table
- Note1) ○: Model NART45R is available only in carbon steel.
- Note2) The rotation speed limit value in the table (*) applies to models that have no seal and use grease lubrication. With those models using oil lubrication, up to 130% of this value is permitted. With those attached with seals, up to 70% of this value is permitted. Note) For information on accuracy standards, please refer to Accuracy standards.
| Optional specifications | Symbol | |
|---|---|---|
| Material | Carbon steel | No Symbol |
| Stainless steel | M | |
| Roller guide |
With cage | No Symbol |
| Full rollers | V | |
| Seal | Without seal | No Symbol |
| With seal | UU | |
| Outer ring shape | Spherical outer ring | R |

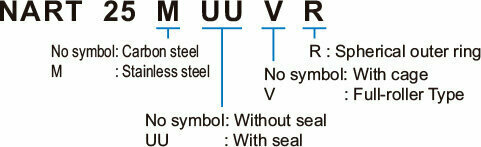

Model Number Coding
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
-
Easy product comparisonsHighlight feature
-
Save items for laterreview Favorites feature
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* | Catalog Download | Manual Download |
|---|---|---|---|---|---|
| NART 5R |  |  |  |  | |
| NART 5VR | | | |||
| NART 6R | | | |||
| NART 6VR | | | |||
| NART 8R | | | |||
| NART 8VR | | | |||
| NART 10R | | | |||
| NART 10VR | | | |||
| NART 12R | | | |||
| NART 12VR | | | |||
| NART 15R | | | |||
| NART 15VR | | | |||
| NART 17R | | | |||
| NART 17VR | | | |||
| NART 20R | | | |||
| NART 20VR | | | |||
| NART 25R | | | |||
| NART 25VR | | | |||
| NART 30R | | | |||
| NART 30VR | | | |||
| NART 35R | | | |||
| NART 35VR | | | |||
| NART 40R | | | |||
| NART 40VR | | | |||
| NART 45R | | | |||
| NART 45VR | | | |||
| NART 50R | | | |||
| NART 50VR | | |
*marks are not available for guest members.
