Roller Follower Separable Type Models NAST/RNAST Model NAST-ZZ
This separable type of bearing system has a labyrinth seal consisting of a pair of side plates formed on both sides of the inner ring of model NAST.
(Model number of the type attached with seals is NAST-ZZUU.)
Basic load rating kN : Basic dynamic load rating 4.12 to 38.7 / Basic static load rating 4.55 to 71.8
Innerdiameter(mm) :
6,8,10,12,15,17,20,25,30,35,40,45,50
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- With/without a seal
Rustprevention
- Type of material
Other
- Roller Guide
- Outer ring outer surface configuration
Display result
- Detailed information

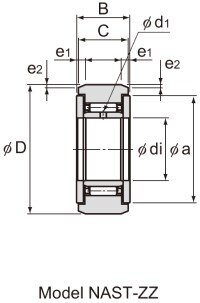

- Dimensional drawing/Dimensional table
- Optional
Detailed information
Dimensional drawing/Dimensional table
Notes on dimensional table
- Note) ○: Model NAST45ZZ is available only in carbon steel.
- Note) The rotation speed limit value in the table (*) applies to models that have no seal and use grease lubrication. With those models using oil lubrication, up to 130% of this value is permitted. With those attached with seals, up to 70% of this value is permitted.
- Note) For information on accuracy standards, please refer to Accuracy standards.
| Optional specifications | Symbol | |
|---|---|---|
| Material | Carbon steel | No Symbol |
| Stainless steel | M | |
| Roller guide |
With cage | No Symbol |
| Seal | Without seal | No Symbol |
| With seal | UU | |
| Outer ring shape | Cylindrical outer ring | No Symbol |
| Spherical outer ring | R | |

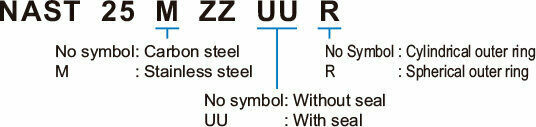

Model Number Coding
