Cross-Roller Ring Standard Models RB and RBV
The basic type of Cross-Roller Ring, in which the outer ring is separable while the inner ring is integrated with main body.

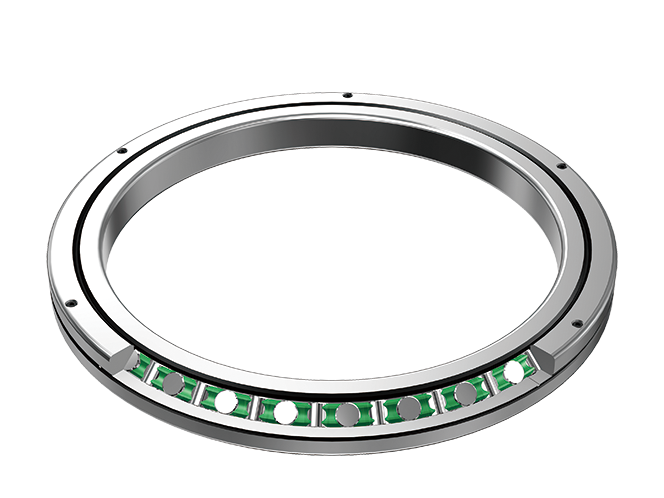

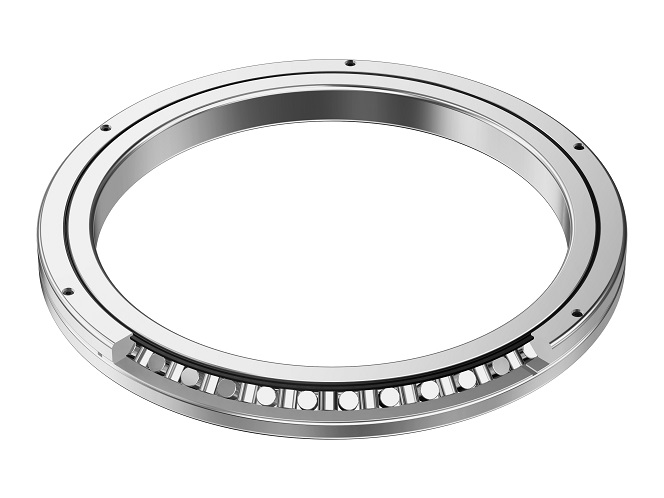

Products with spacer retainers (Model RB) have a low friction coefficient and demonstrate highly stable rotational torque. Full-Roller products (Model RBV) are suited to low-speed rotary operations with higher loads, and they are also compatible with all-metal specifications.
Types
Highlight feature tags
- Full Roller
- Special Environment
- High rigidity
- Separable outer ring type
- Outer ring rotation
- Large load capacity
- Rotation accuracy
- High load
- High rigidity
- Separable outer ring type
- Outer ring rotation
- Large load capacity
- Rotation accuracy
Basic load rating (radial) (kN): Basic dynamic load rating 3.23 to 1350 / Basic static load rating 3.1 to 3970
- High rigidity
- Separable outer ring type
- Outer ring rotation
- Large load capacity
- Rotation accuracy
Basic load rating (radial) (kN): Basic dynamic load rating 18 to 320 / Basic static load rating 21.9 to 948
- Full Roller
- Special Environment
- High rigidity
- Separable outer ring type
- Outer ring rotation
- Rotation accuracy
- High load
Basic load rating (radial) (kN): Basic dynamic load rating 4.62 to 1639 / Basic static load rating 4.69 to 4910
Detailed information for each model number
Dimensional drawing/Dimensional table
