Model Number Coding
Model number confi gurations diff er depending on the model features. Refer to the corresponding sample model number confi guration.
Ball Spline
Model

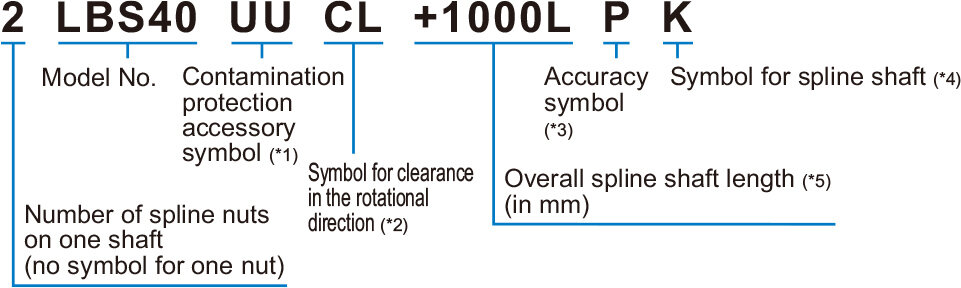

● Models SLS, SLS-L, SLF, LBS, LBST, LBF, LBR, LBH, LT, LF, LT-X, LF-X, LFK-X and LFH-X
- 1See contamination protection accessory symbol
- 2See symbol for clearance in the rotational direction
- 3See accuracy symbol
- 4See symbol for spline shaft
- 5See overall spline shaft length
Rotary Ball Spline
Model

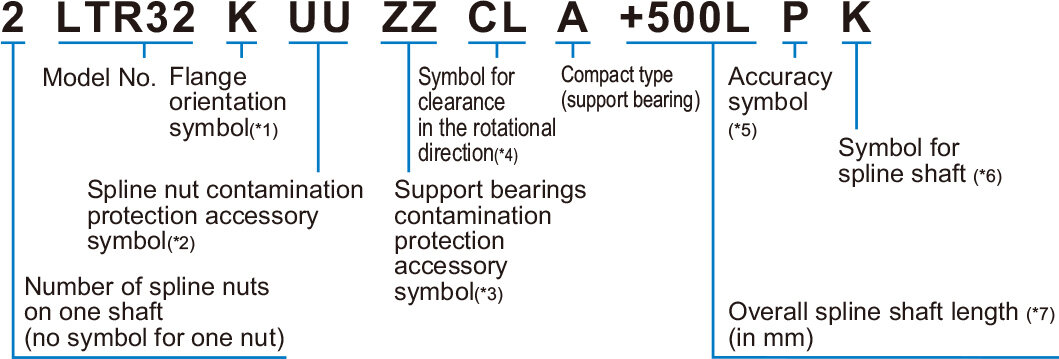

● Models LTR, LTR-A, LBG and LBGT
- 1No Symbol: standard K: fl ange inversed
- 2 See contamination protection accessory symbol
- 3See contamination protection accessory symbol
- 4 See symbol for clearance in the rotational direction
- 5 See accuracy symbol
- 6See symbol for spline shaft
- 7 See overall spline shaft length
