Compact Series KR LM Guide Actuator with Right / Left Ball Screw Model KR-RL
Sizes : 15,20,26,30H,33,45H,46,55,65
Types
Highlight feature tags
- Direct motor coupling
- Motor wrap
- Direct motor coupling
Sizes : 15,20,26,30H,33,45H,46,55,65
- Direct motor coupling
Sizes : 15,20,26,30H,33,45H,46,55,65
- Motor wrap
Sizes : 15,20,26,30H,33,45H,46,55,65
- Motor wrap
Sizes : 15,20,26,30H,33,45H,46,55,65
Features

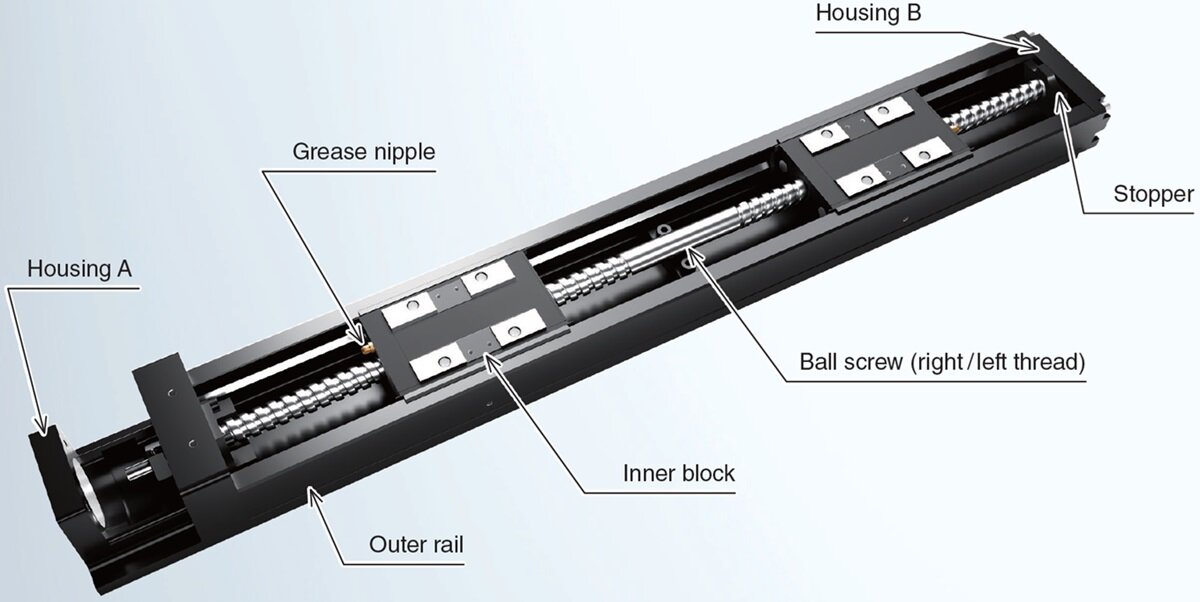

Structure and Features
Lineup

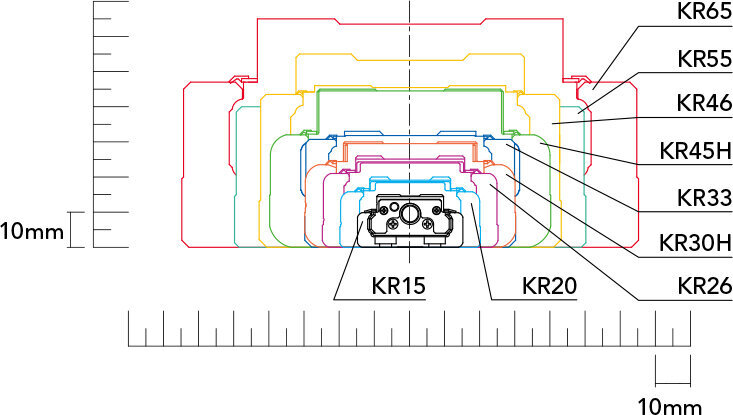

Nine sizes and two block types are available for selecting a product that suits the application.
Size
Block type
A Type
The typical block type of the LM Guide Actuator KR.
C Type
Shorter overall length than the A type inner blocks as an extended stroke type.
Note) Only for KR30H, 33, 45H, and 46.
Example Applications

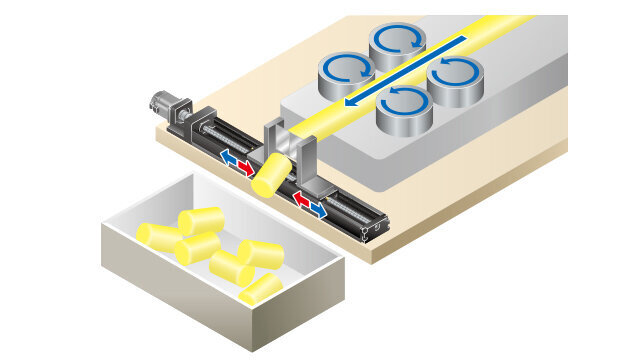

Right/left threads used for the driving element

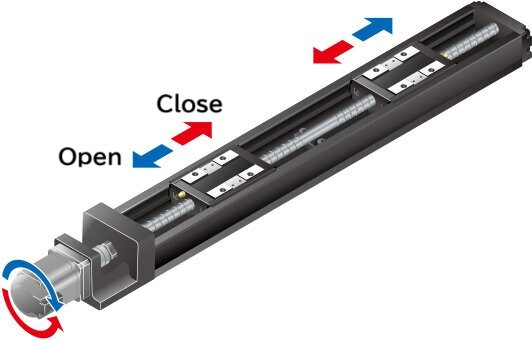

One motor performs both the "open" and "close" operations.

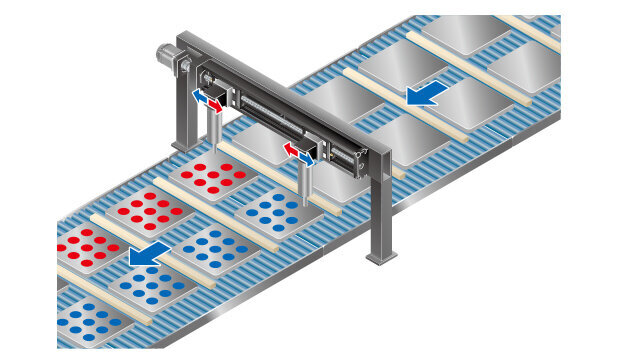

It can be used in a wide range of applications, such as gripping, measuring, and positioning.
Modular structure

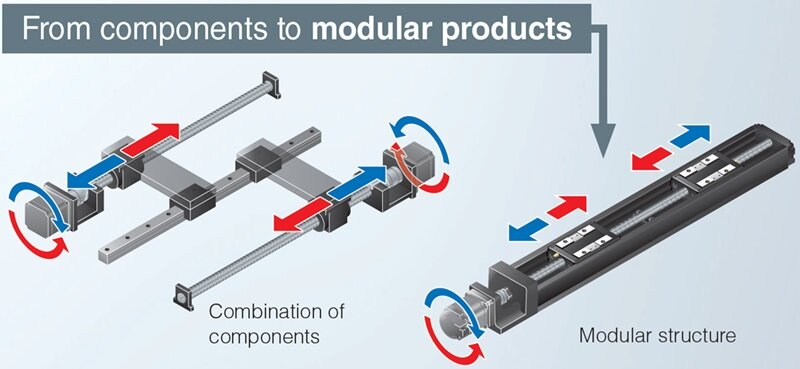

Adopts a KR modular structure to greatly reduce the number of parts for components using the LM Guide and ball screws.
In addition, the time required for procurement work, delivery management, design, and assembly is reduced, resulting in shortened lead times to complete equipment.
Can be used in any orientation
Each row of balls in the linear motion guide is arranged at a 45° contact angle, achieving the same load rating in 4 directions (radial, reverse-radial, and horizontal directions) acting on the inner block. It can be used in any orientation. Optimal for end effectors of robot arms that move freely.
