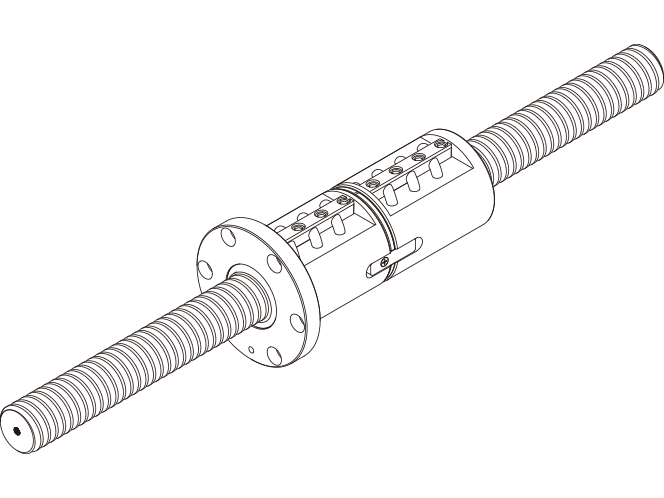

Full-Ball Type Precision Ball Screw Model BNFN-V
The most common type with a preload provided via a spacer between the two combined ball screw nuts to eliminate the backlash. It can be mounted using the bolt holes drilled on the flange.
Screwshaftdiameter(mm) : 16,28,32,36,40,45,50
Types
Highlight feature tags
- High speed
- Preload
- Return-pipe type
- Return-piece
- Double nut
- Precision positioning (ball screw)
- Double nut preload
- Precision positioning (ball screw)
- Preload
- Double nut preload
- High speed
- Return-piece
- Double nut
DN value : 100000
Screwshaftdiameter(mm) :
16,28,32
- Precision positioning (ball screw)
- Preload
- Double nut preload
- High speed
- Return-pipe type
- Double nut
DN value : 130000
Screwshaftdiameter(mm) :
28,36,40,45,50
Detailed information for each model number
