Rotary Ball Spline with Support Bearing Rotary Model LTR-V Model LTR-V
This ball spline is a lightweight and compact type featuring the same outer diameter of the nut as the Model LT-X and ball raceways that use angular contact to accommodate support bearings.
basic load ratings(kN) : Basic dynamic load rating 8.4 to 15.9 / Basic static load rating 13.4 to 26.2
Spline shaft diameter (mm) :
16,20,25
Select display items
Click on the feature tag you wish to view and press the button to display. Detailed information is displayed at the bottom of the screen.
- Select all
- Deselect all
Detailed information
-
Easy product comparisonsHighlight feature -
Save items for laterreview Favorites feature
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
Contamination Protection
- Material and Surface Treatment
- Contamination Protection
Lubrication
- Lubrication
- QZ Lubricator
Display result
- Detailed information
- Dimensional drawing/Dimensional table
- Optional
Detailed information

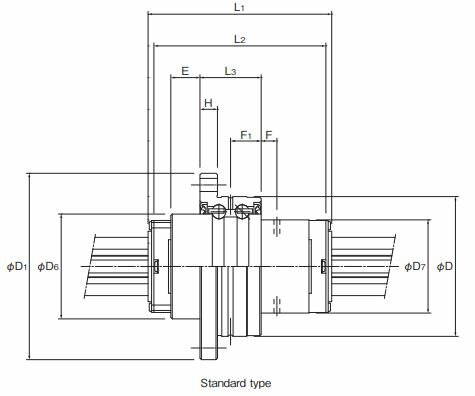

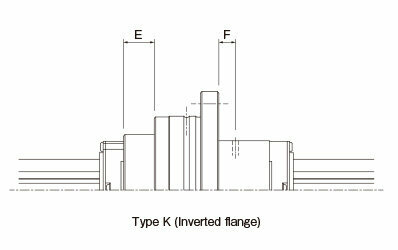

Dimensional drawing/Dimensional table
Notes on dimensional table

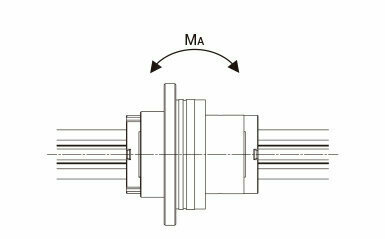

- Note: MA indicates the permissible moment value in the axial direction when a single spline nut is used, as shown in the figure above.
| Model No. | Accuracy | ||
|---|---|---|---|
| Normal grade (No symbol) | High accuracy grade (H) | Precision grade (P) | |
| LTR16V | 2000 | 1000 | 1000 |
| LTR20V | 2000 | 1500 | 1000 |
| LTR25V | 3000 | 1500 | 1000 |
| Model No. | Grease lubrication | Oil lubrication |
|---|---|---|
| LTR16V | 4500 | 6200 |
| LTR20V | 4000 | 5400 |
| LTR25V | 3600 | 4900 |

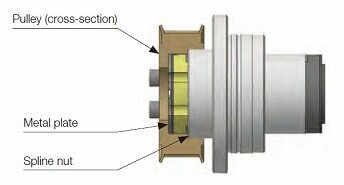

Mounting a Pulley (Recommended)
When mounting a pulley, make sure it is touching either the end face of the metal plate or the end face of the spline nut before use.

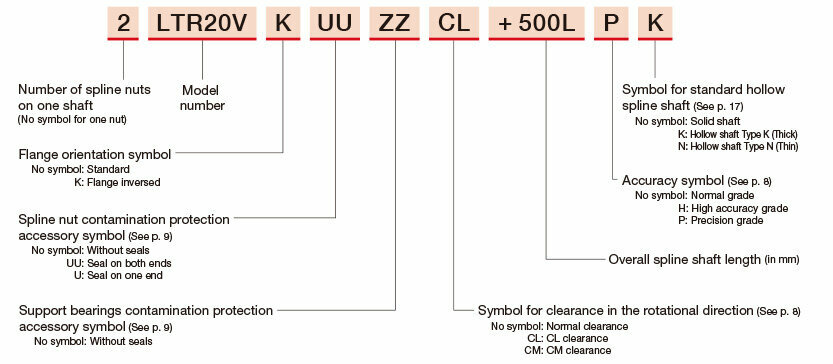

Model Number Coding
THK Online Services
Member-Exclusive Content
These contents can be accessed
after registering as a member.
Benefit 1: Useful features
-
Easy product comparisonsHighlight feature
-
Save items for laterreview Favorites feature
Benefit 2: Exclusive content
| Products | Contents |
|---|---|
| LM Guide | LM rail standard lengths and maximum length, tapped-hole type LM rail, frame for LM rail clamps, steel plate for LM rail clamps, etc. |
| Ball Screw | Axial clearance, maximum manufacturing length of shaft, etc. |
| Actuator | Movable part mass, etc. |
Optional
No option tag has been selected.
Check detailed information with the tool
Click on the icon for the item you want to see in detail. Member registration and login are required for use.
Designer is the former optimal product selection tool
You can download 2D/3D CAD by clicking on the icon and selecting from the CAD format.
| Model No. | Designer* | Life Calculator* | CAD Download* | Catalog Download | Manual Download |
|---|---|---|---|---|---|
| LTR16V |  |  |  |  |  |
| LTR20V | | | |||
| LTR25V | | |
*marks are not available for guest members.
