Determining the Accuracy

Accuracy Grades

Copy item link
Add item to favorites

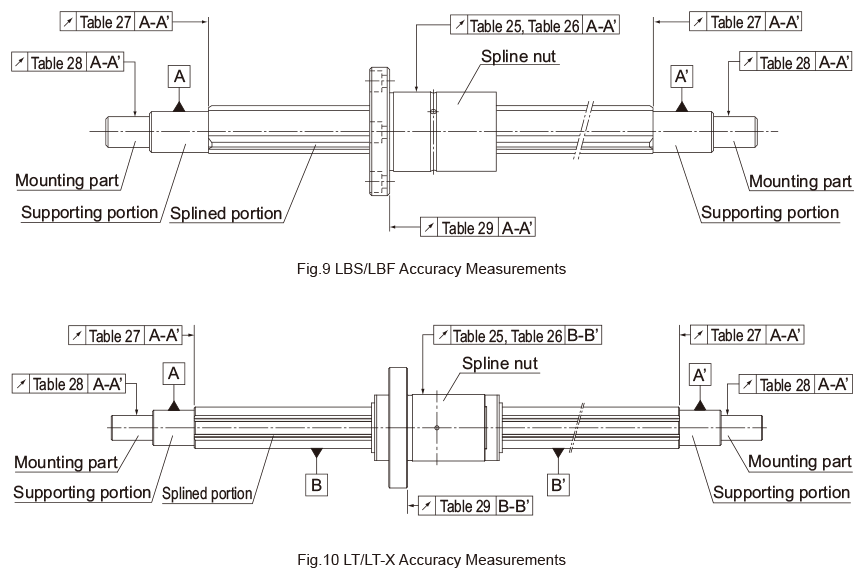

The accuracy of a ball spline is divided into normal grade (No symbol), high accuracy grade (H), or precision grade (P) based on the radial runout of the spline nut diameter in relation to the spline shaft support. The areas measured are shown in Fig.9 and Fig.10.
