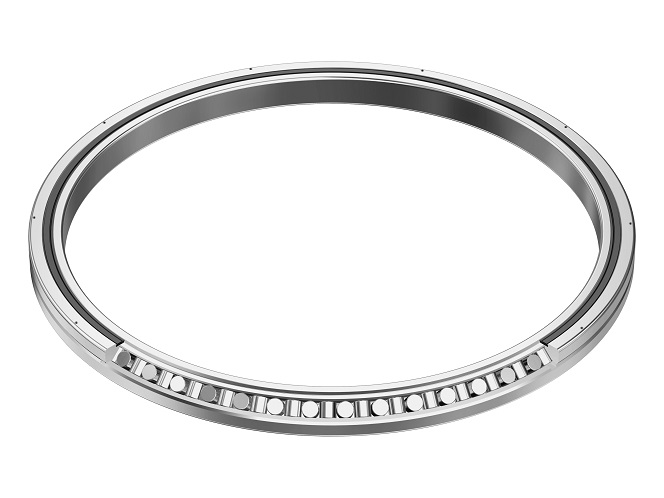

Cross-Roller Ring Thin Type Models RA and RAV
This model is a compact type of model RB with extremely thin outer and inner rings. It is optimal for areas where the swiveling unit needs to be light and small.
Products with spacer retainers (Models RA) have a low friction coefficient and demonstrate highly stable rotational torque. Full-Roller products (Model RAV) are suited to low-speed rotary operations with higher loads, and they are also compatible with all-metal specifications.
Types
Highlight feature tags
- Spacer Retainer
- Full Roller
- Special Environment
- High rigidity
- Separable outer ring type
- Outer ring rotation
- Rotation accuracy
- High load
- Spacer Retainer
- High rigidity
- Separable outer ring type
- Outer ring rotation
- Rotation accuracy
Basic load rating (radial) (kN): Basic dynamic load rating 5.10 to 25.8 / Basic static load rating 7.19 to 54.7
- Full Roller
- Special Environment
- High rigidity
- Separable outer ring type
- Outer ring rotation
- Rotation accuracy
- High load
Basic load rating (radial) (kN): Basic dynamic load rating 7.24 to 41 / Basic static load rating 10.9 to 96.5
Detailed information for each model number
Dimensional drawing/Dimensional table
